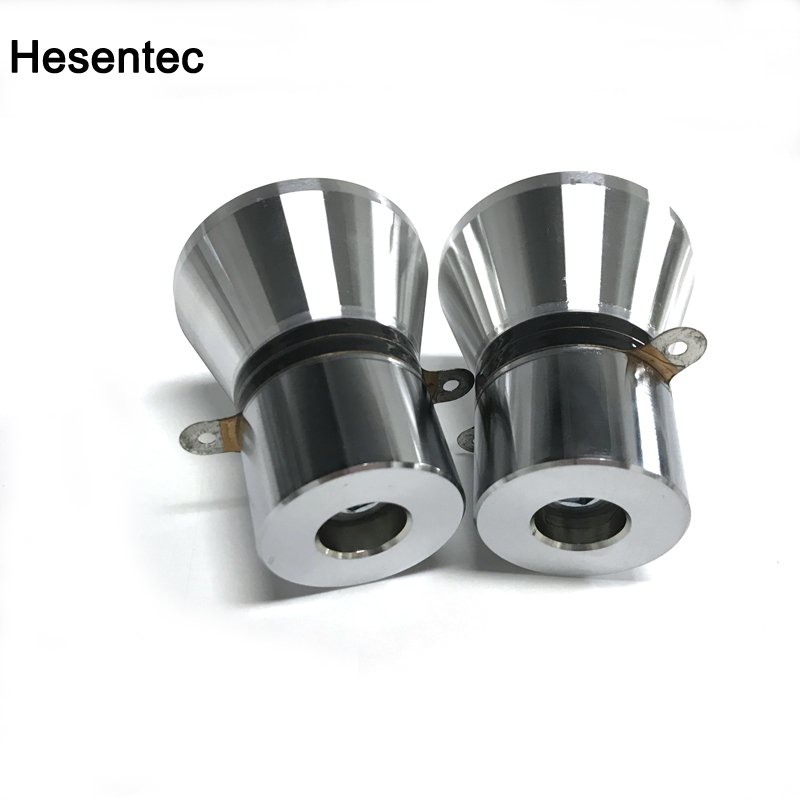

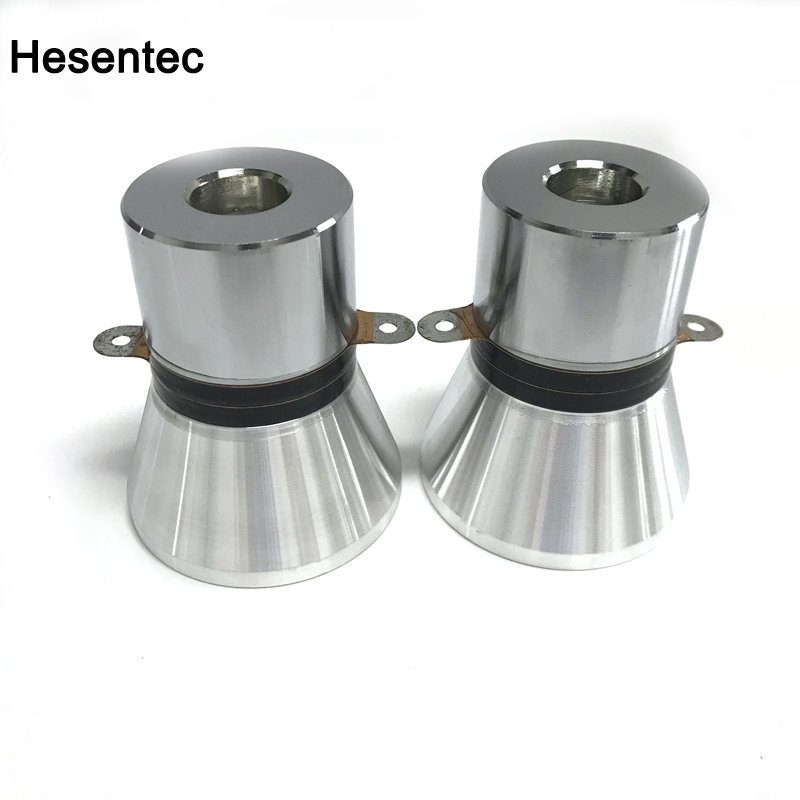

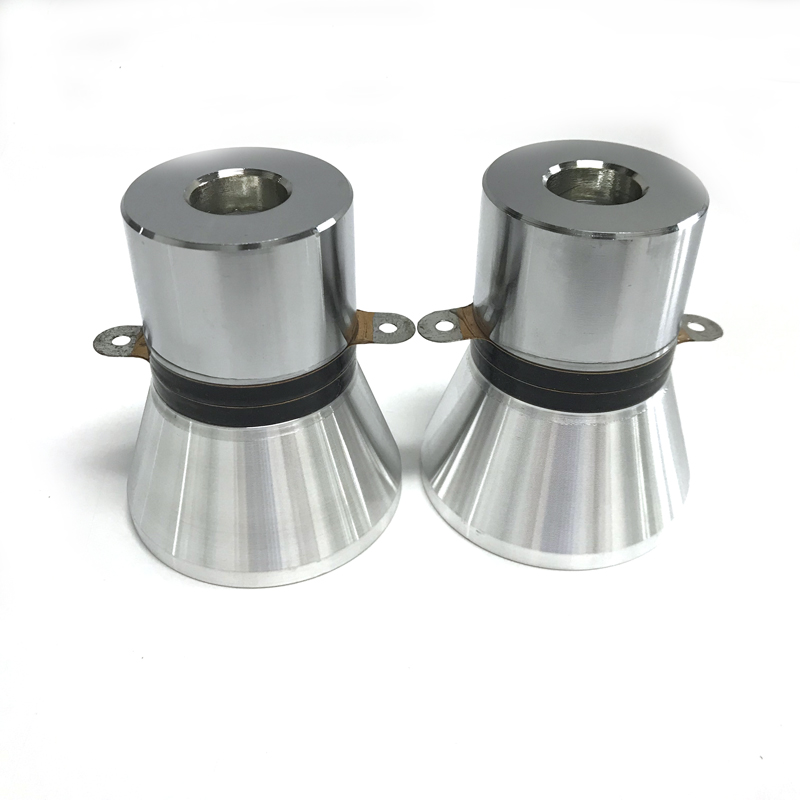

25KHz Hesen Ultrasonic Cleaning Transducer Piezo Transducer
The products are widely used in industrial ultrasonic cleaning equipment, ultrasonic welding equipment, ultrasonic sewage treatment, paint, petroleum, metal powder, automobile, circuit board, medical equipment, optical glass, precision hardware, etc. Electroplating chemical industry, liquid crystal display, light industrial food industry and other fields
Purpose of use:
Cleaning, degassing, disinfection, emulsification, mixing, replacement, extraction and so on.
Scope of application:
Electronic workshop, industry, laboratory, hospital, watch shop, glasses shop, jewelry shop, mobile phone repair shop, family, etc.
Cleaning items:
Electronic products, laboratory supplies, office supplies, household goods, computer motherboards and accessories, glassware, circuit boards, automotive parts, hardware accessories, medical devices, dentures and dental equipment, clocks and watches, glasses, gold and silver jewelry, golf, shaving knives, coins, badges, tableware, bottles and fruits, etc.
Features:
1. Low heat
2. Good thermal stability
3. Frequency and static capacitance consistency strong.
4. Resonance impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency, high amplitude
Payment Terms:Prepaid by Bnak, T/T and West Union, ect.
Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.
|
Model |
Frequency |
Capacitance |
Resonance Impedance |
Size |
Power |
Insulation resistance |
|
（KHz） |
（pF） |
（Ω） |
Radiation Head*Height (mm) |
（W） |
(2500VDC) |
|
HS-8SH-3825 |
25±0.8 |
3800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-8SH-3828 |
28±0.5 |
3800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-8SH-3833 |
33±0.5 |
3800±10% |
≤20Ω |
48*61 |
60w |
≥100MΩ |
|
HS-8SH-3840 |
40±0.5 |
3800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-8SH-4520 |
21.5±0.8 |
5600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-8SH-4528 |
28±0.5 |
5600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-8SH-5028 |
28±0.5 |
7200±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-3528 |
28 ±0.5 |
4000±10% |
≤20Ω |
45*79 |
50w |
≥100MΩ |
|
HS-4AH-3540 |
40 ±1.0 |
4000±10% |
≤20Ω |
45*55 |
50w |
≥100MΩ |
|
HS-4SH-3825 |
25±0.8 |
4800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-4SH-3828 |
28±0.5 |
4800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-4SS-3833 |
33±0.5 |
4800±10% |
≤20Ω |
48*62 |
60w |
≥100MΩ |
|
HS-4SH-3840 |
40±0.5 |
4800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-4SH-4520 |
22±0.5 |
7600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-4SH-4525 |
25±0.5 |
7600±10% |
≤20Ω |
67*76 |
100w |
≥100MΩ |
|
HS-4SH-4528 |
28±0.5 |
7600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-4SH-4540 |
40±0.5 |
7600±10% |
≤20Ω |
55*53 |
100w |
≥100MΩ |
|
HS-4SH-5028 |
28±0.5 |
9600±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-38100 |
100±1.5 |
4800±10% |
≤25Ω |
40*57 |
60w |
≥100MΩ |
|
HS-4AS-38120 |
120±1.5 |
4800±10% |
≤25Ω |
40*58 |
60w |
≥100MΩ |
|
HS-4AH-25200 |
200±2.0 |
2300±10% |
≤35Ω |
30*35 |
20w |
≥100MΩ |
