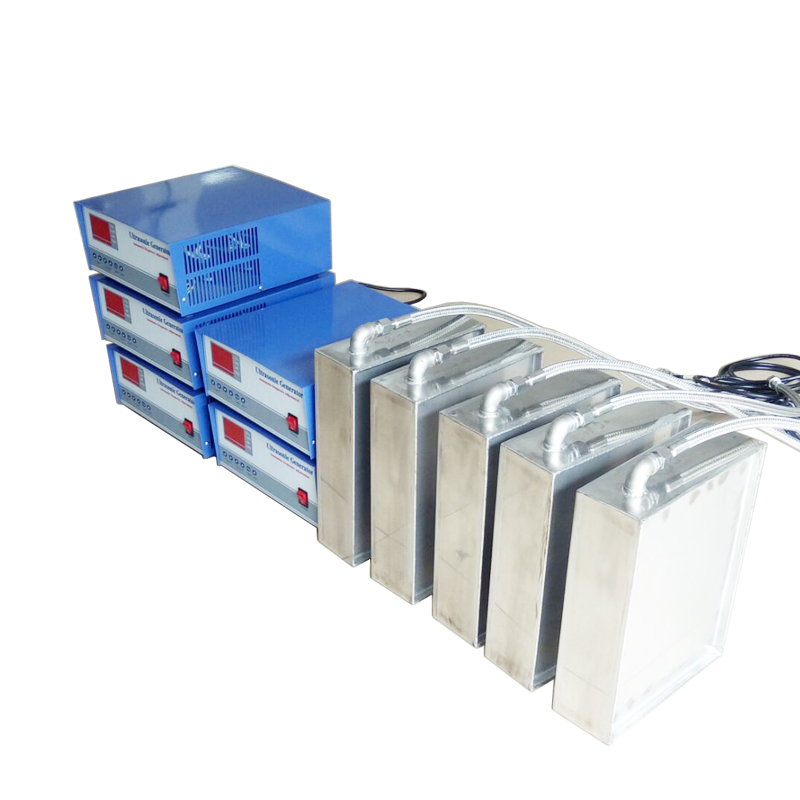

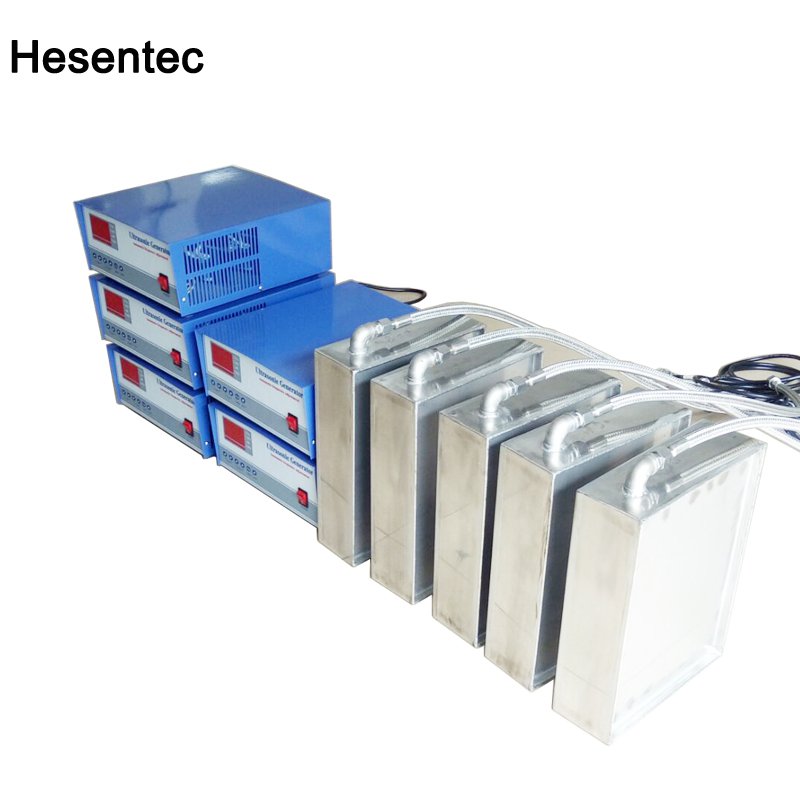

28K Waterproof Vibration Plate Submersible Ultrasonic Transducer

28K Waterproof Vibration Plate Submersible Ultrasonic Transducer

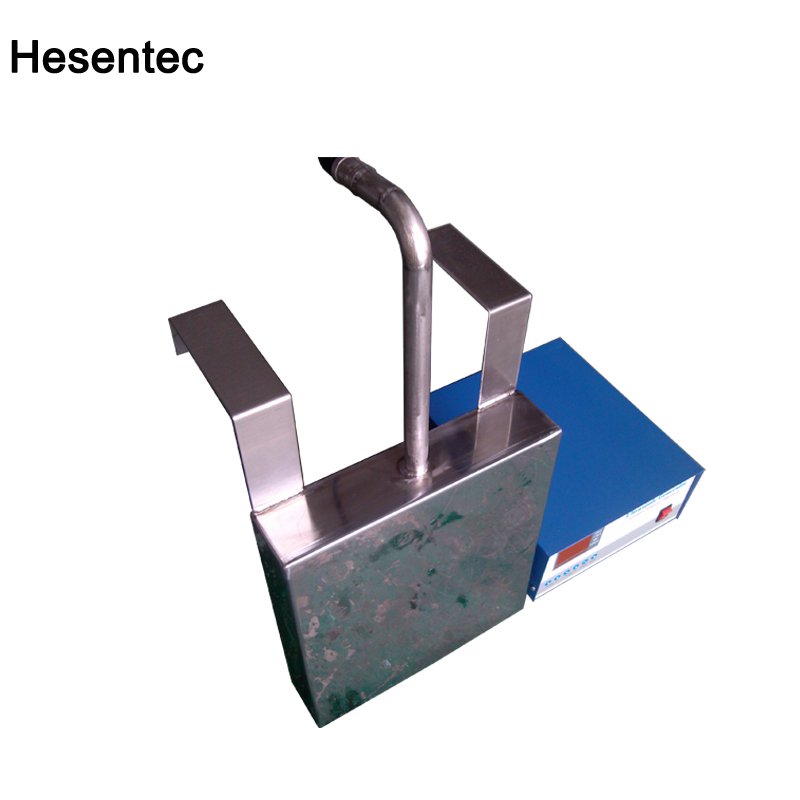

The ultrasonic transducer input type ultrasonic vibration plate is an ultrasonic device added on the basis of the existing tank body. The input type ultrasonic vibration plate is installed in a flexible manner, and the vibration plate can be installed at the bottom of the groove to make the ultrasonic wave radiate upward, or Installed on the side of the groove, it can transmit ultrasonic waves to the side, or it can be installed on the liquid surface to emit ultrasonic waves downwards. When the standard type of cleaning machine can not meet the cleaning requirements, the input type ultrasonic vibration plate can be used to make it suitable for various kinds. Clean the required cleaning machine. Widely used in the pre-treatment and post-treatment processes of electroplating, painting, electrophoresis, painting and other processes.
When the standard type of ultrasonic cleaner is not suitable for a specific working environment, in addition to special specifications can be customized, the input shock plate device can also be used. In the existing equipment, if there is a common cleaning tank, the vibration plate device can be added and converted into an ultrasonic cleaning machine.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
HS-ZBH300W	300*190*100	25,28,33,40,80,130	300	6
HS-ZBH600W	360*275*100	25,28,33,40,80,130	600	12
HS-ZBH1000W	450*350*100	25,28,33,40,80,130	1000	20
HS-ZBH1200W	470*380*100	25,28,33,40,80,130	1200	24
HS-ZBH1500W	520*450*100	25,28,33,40,80,130	1500	30
HS-ZBH1800W	560*450*100	25,28,33,40,80,130	1800	36
HS-ZBH2000W	650*450*100	25,28,33,40,80,130	2000	40
HS-ZBH2400W	740*520*100	25,28,33,40,80,130	2400	48
HS-ZBH3000W	820*540*100	25,28,33,40,80,130	3000	60
HS-ZBH5000W	1200*590*100	25,28,33,40,80,130	5000	100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
