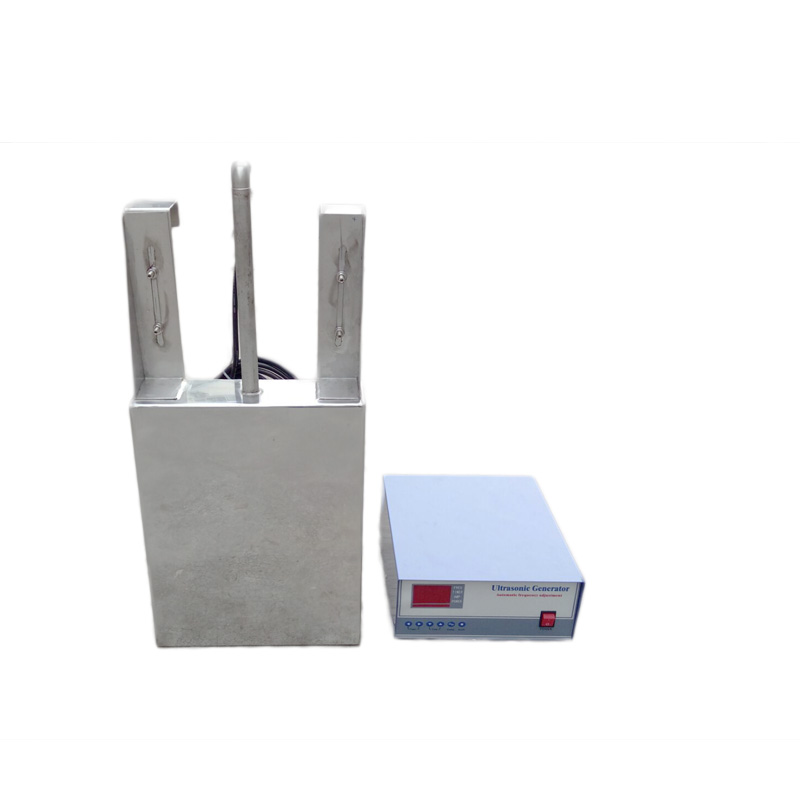

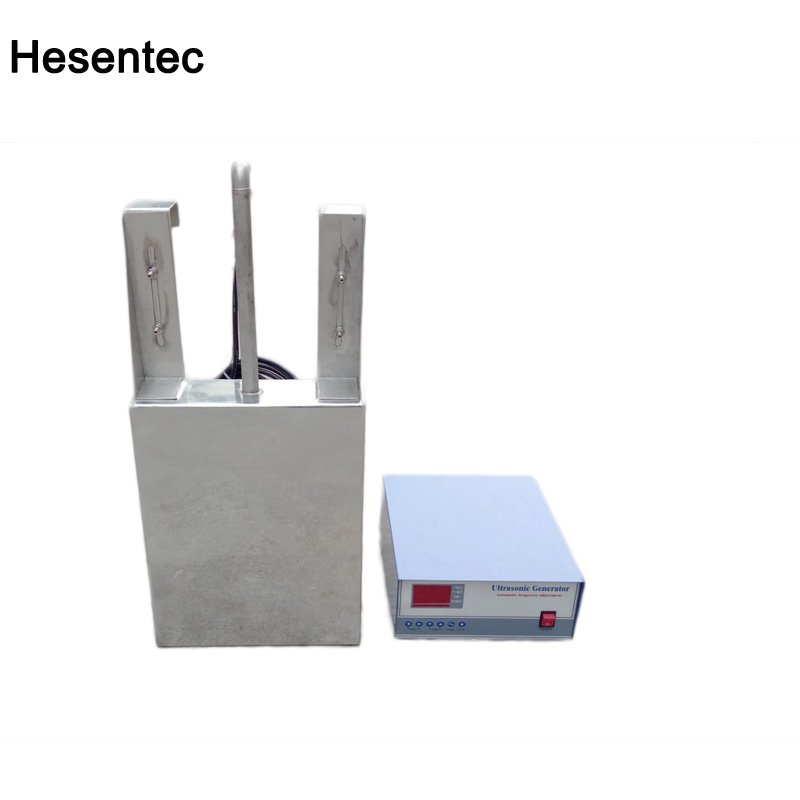

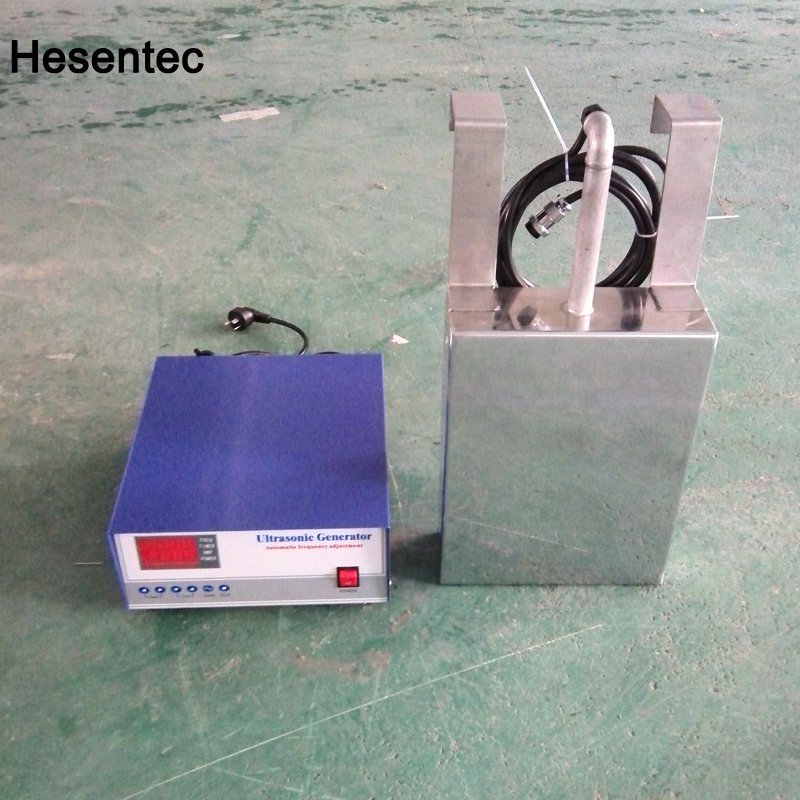

40K/80K 1000W Multi Freqeuncy Immersible Ultrasonic Transducer

40K/80K 1000W Multi Freqeuncy Immersible Ultrasonic Transducer Introduction

40K/80K 1000W Multi Freqeuncy Immersible Ultrasonic Transducer

product mix

1: All stainless steel structure, acid and alkali resistance, beautiful and durable.

2: Separate structure, high frequency connection with socket between vibration plate and ultrasonic generator, easy to use and maintain.
3: The installation and layout are flexible, and can be made into three types: bottom-shock type, side-shock type and top-shock type according to different needs to meet various cleaning requirements.
4: Superiority of ultrasonic vibration plate. Easy maintenance
5: When the power of trough type ultrasonic cleaner is too small, the input type vibration plate device can be used. If a shock plate device is added to the existing cleaning tank, it is refitted into an ultrasonic cleaning machine. It's also a low-cost way.
Scope of application
Clean electroplated parts before plating, clocks and watches, hardware and machinery parts, polyester filter core, semiconductor silicon, tools, lenses, spectacle frames, jewelry, glassware, etc.


Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
HS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
HS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
HS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
HS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
HS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
HS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
HS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
HS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
HS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
HS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)


40K/80K 1000W Multi Freqeuncy Immersible Ultrasonic Transducer
40K/80K 1000W Multi Freqeuncy Immersible Ultrasonic Transducer
