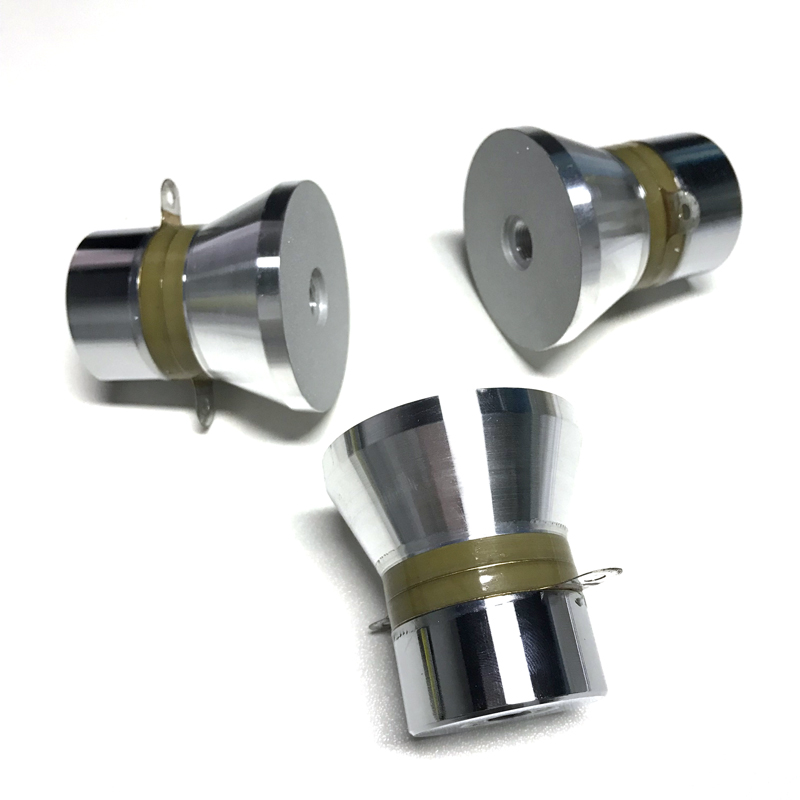

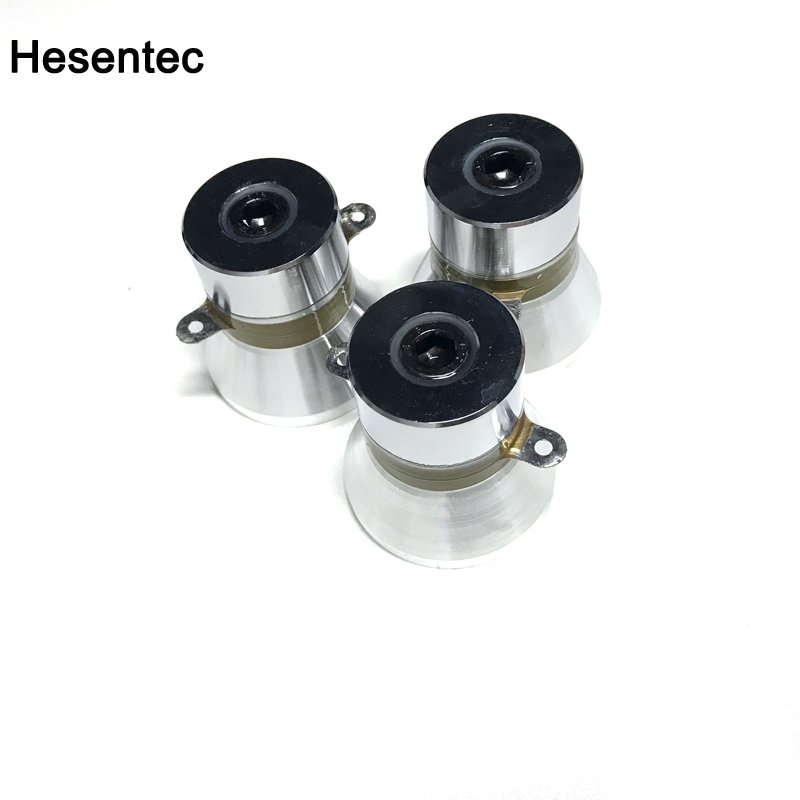

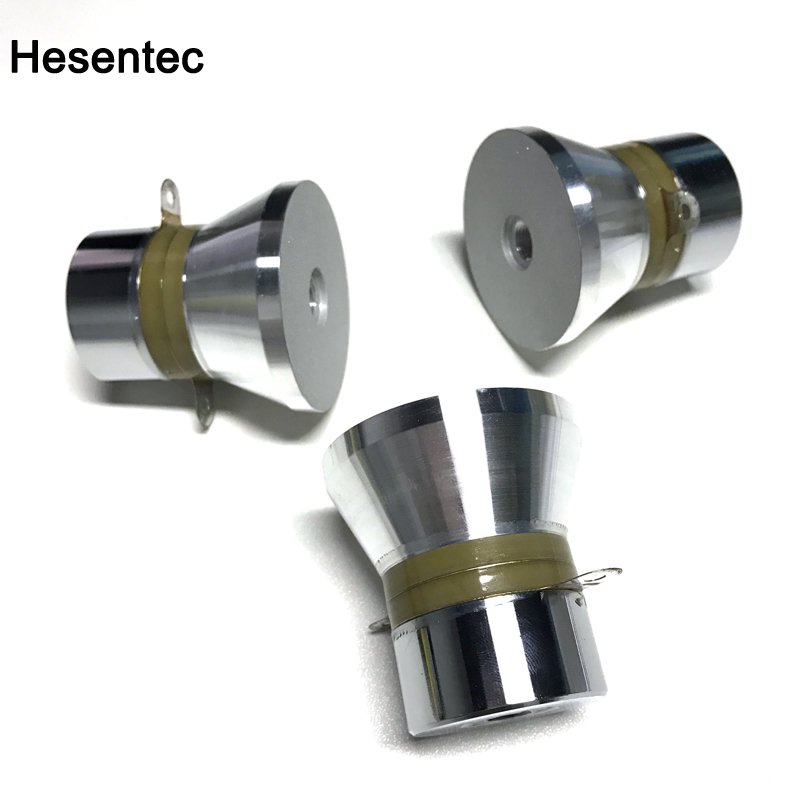

33KHz Hesen Ultrasonic Cleaning Transducer Vibration Transducer

33KHz Hesen Ultrasonic Cleaning Transducer Vibration Transducer

Introduction of ultrasonic oscillator:
Ultrasound vibrator, also known as ultrasonic vibrator, ultrasonic vibrator, is a kind of ultrasonic transducer, is the core component of the ultrasonic cleaning machine. Industry standard name: ultrasonic transducer, belongs to piezoelectric ceramic material, one of the main parts of ultrasonic cleaning machine. In terms of power, the single ultrasonic head is 60W and 100W. Frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, or higher, respectively; from the shape of the difference is: straight column, horn, or higher.
Characteristics of ultrasonic oscillator:
1. High performance: high mechanical Q value, high conversion efficiency and good quality; 2. ultrasonic oscillator transducer, large amplitude, excellent performance; 3. ultrasonic oscillator transducer, heat resistance: piezoelectric ceramic material has good heat resistance, can expand the use of temperature range, at the same time, high Q value, small resonant impedance, low calorific value; 4. ultrasonic oscillator transducer product appearance clean, rust-free. No obvious depression or scratch.
Installation technology of ultrasonic vibration head:
1. Preparatory tools: Argon arc welding, No. 10 inner hexagonal wrench, chrome-iron-tin wire, 2.5 square high temperature wire, 2*2.5 cable line, oscillator glue, (stripping pliers, casing, tie-up, sand blasting machine, pipe fittings, etc.). 2. Welding screw: Calculate the arrangement position of the oscillator, weld the screw in the cleared position, then clean the screw around, make sure it is flat, so as not to affect the installation of the oscillator. 3. Glue disposition: mix glue evenly according to the prescribed proportion. (Merry, Eroda, 4030 glue mixed before bonding, KMD398 glue mixed in the bonding process). 4. Install the vibration head: Apply the glue evenly on the bottom of the ultrasonic oscillator, gently twist the air and excess glue between the bottom of the transducer and the contact surface of the cylinder bottom, so that the oscillator is more closely integrated with stainless steel. Fifth, solidification and condensation: solidification at relatively high room temperature, 4-8 hours wiring, 24 hours after power test machine, test machine absolutely not allowed to be empty vibration. Note: 1. Metal seed nailing machine can also replace argon arc welding. 2. Welding screw must be fully welded, otherwise it is easy to fall off. 3. Regarding curing, the length of time should consider temperature, low temperature for a long time, high temperature for a faster time. It is recommended to operate at room temperature, even if heated, do not overheat, appropriate and best.

Features:
1. Low heat
2. Good thermal stability
3. Frequency and static capacitance consistency strong.
4. Resonance impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency, high amplitude

Payment Terms:Prepaid by Bnak, T/T and West Union, ect.

Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
