Submersible Ultrasonic Transducer SS316L Cleaner Vibration Plate

Submersible Ultrasonic Transducer SS316L Ultrasonic Cleaner Vibration Plate

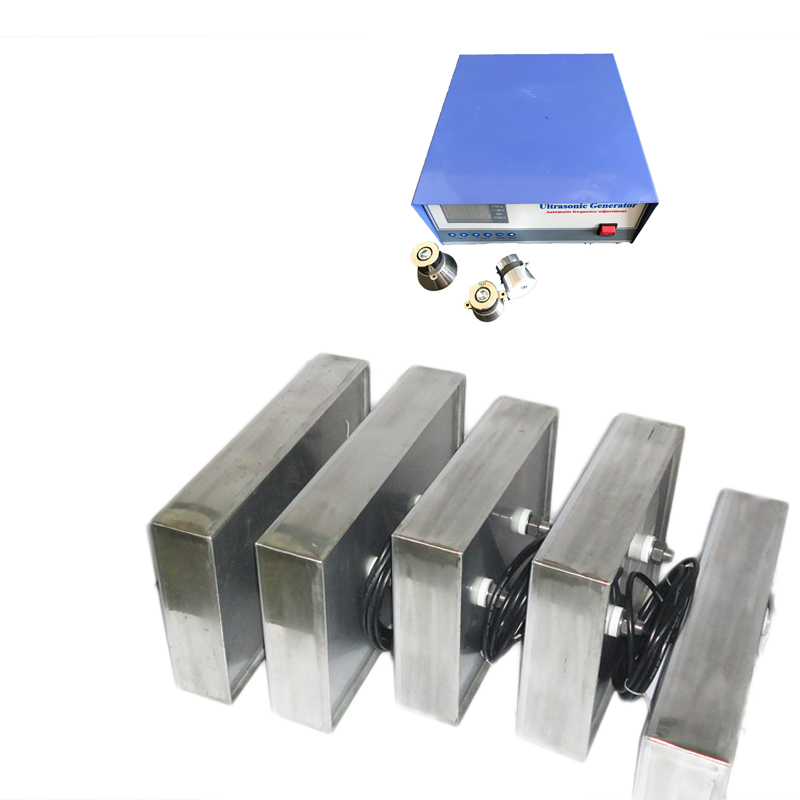

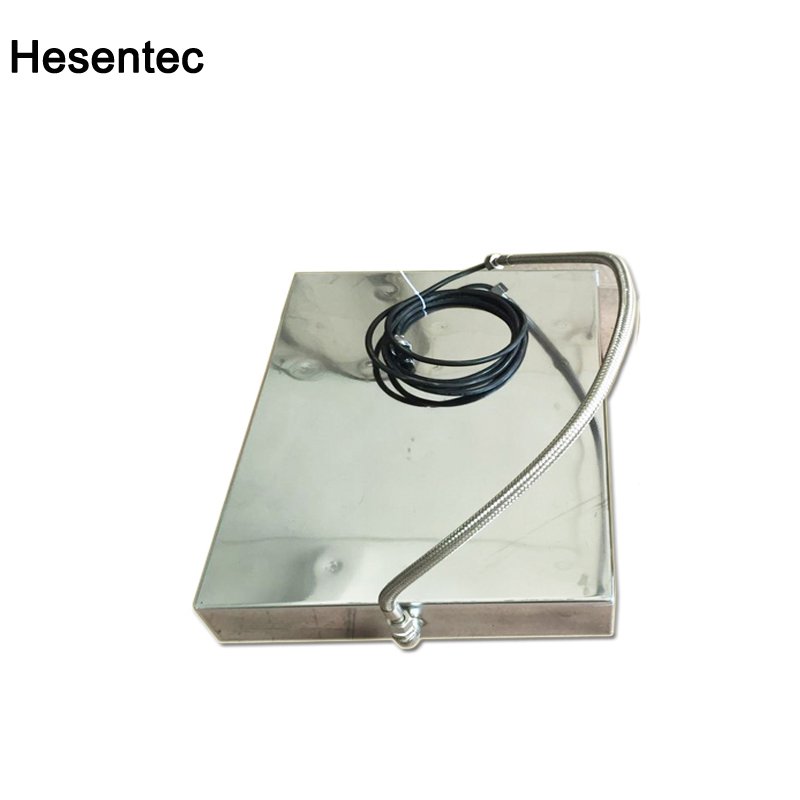

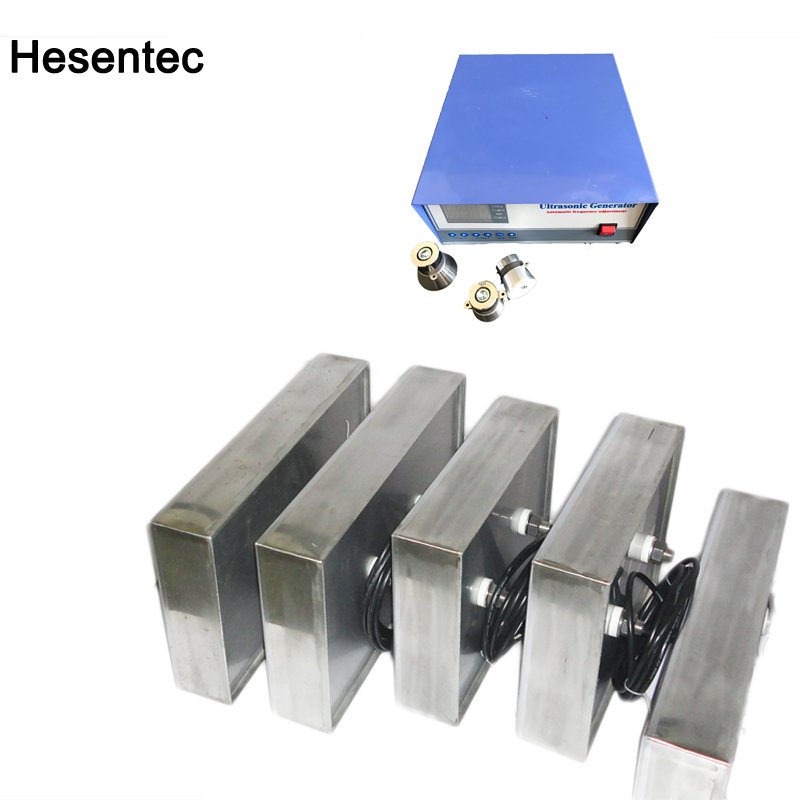

Ultrasonic vibration plate, also known as immersion ultrasonic transducer, is suitable for cleaning parts before cleaning, watch parts, hardware parts, polyester filters, semiconductor wafers, tools, lenses, frames, jewelry, jewelry, glass, Various industries, such as utensils, are widely used.
The application principle of the ultrasonic vibration plate is a high-frequency oscillation signal emitted by the ultrasonic generator, which is converted into a high-frequency mechanical oscillation by the transducer and propagated to the medium, and the ultrasonic wave in the cleaning solvent is densely radiated in the cleaning liquid to make the forward radiation. The liquid flows to generate tens of thousands of tiny bubbles. The tiny bubbles (cavitating nuclei) present in the liquid vibrate under the action of the sound field. When the sound pressure reaches a certain value, the bubbles grow rapidly, then suddenly close, and the bubbles close. When a shock wave is generated, thousands of atmospheric pressures are generated around it, destroying the insoluble dirt and dispersing them in the cleaning liquid. When the group particles are wrapped by the oil and adhere to the surface of the cleaning member, the oil is emulsified, and the solid particles are Disengaged, thereby achieving the purpose of purifying the surface of the cleaning member.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
HS-ZBH300W	300*190*100	25,28,33,40,80,130	300	6
HS-ZBH600W	360*275*100	25,28,33,40,80,130	600	12
HS-ZBH1000W	450*350*100	25,28,33,40,80,130	1000	20
HS-ZBH1200W	470*380*100	25,28,33,40,80,130	1200	24
HS-ZBH1500W	520*450*100	25,28,33,40,80,130	1500	30
HS-ZBH1800W	560*450*100	25,28,33,40,80,130	1800	36
HS-ZBH2000W	650*450*100	25,28,33,40,80,130	2000	40
HS-ZBH2400W	740*520*100	25,28,33,40,80,130	2400	48
HS-ZBH3000W	820*540*100	25,28,33,40,80,130	3000	60
HS-ZBH5000W	1200*590*100	25,28,33,40,80,130	5000	100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
