  • 20KHz/22KHz 100W HESEN Ultrasonic Cleaning Transducer/Oscillator

20KHz/22KHz 100W HESEN Ultrasonic Cleaning Transducer/Oscillator

20KHz/22KHz 100W HESEN Ultrasonic Cleaning Transducer/Oscillator Introduction

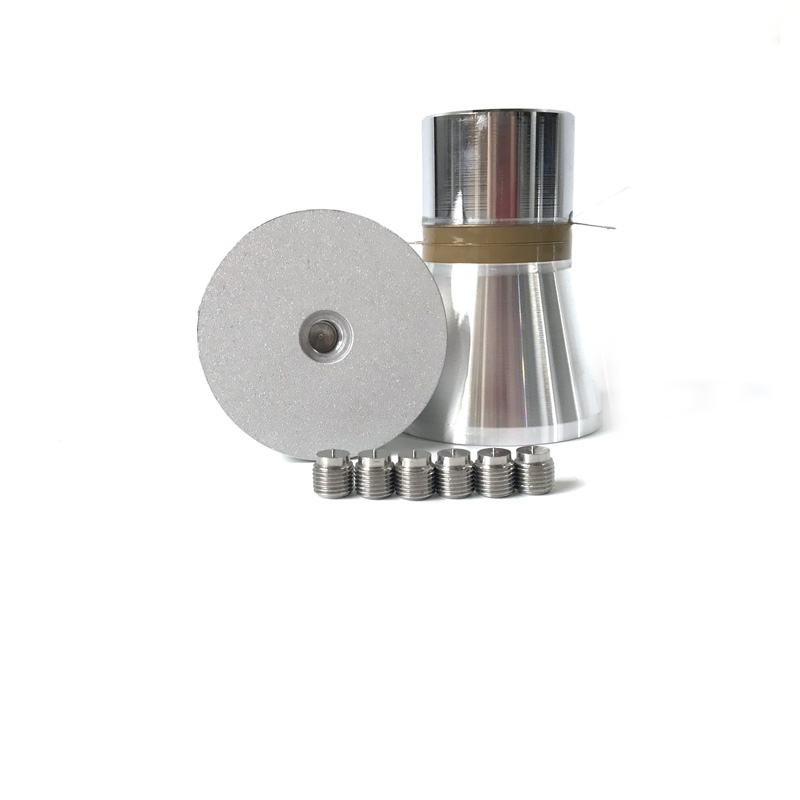

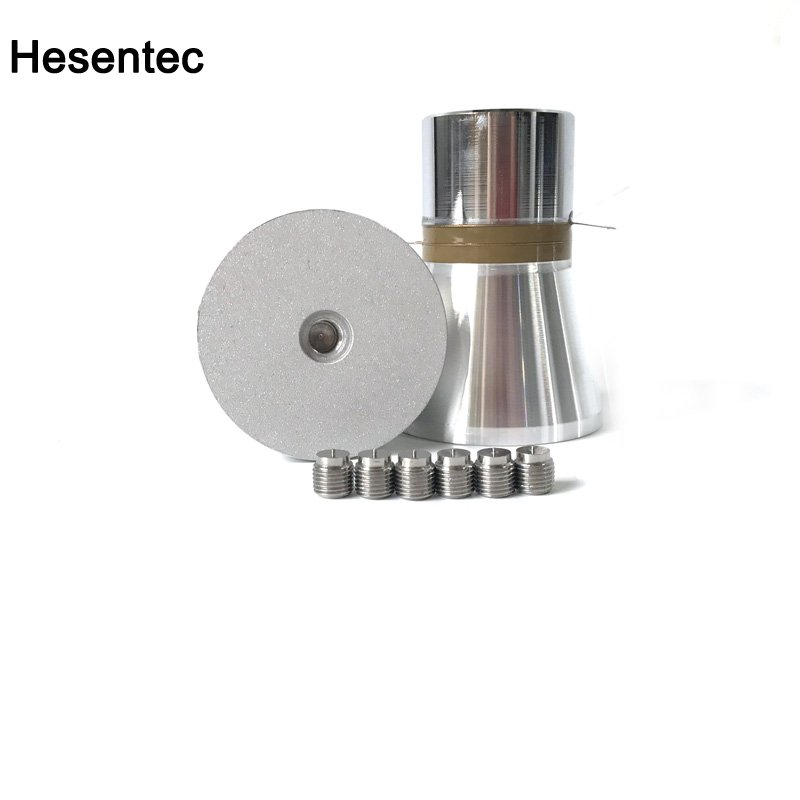

20KHz/22KHz 100W HESEN Ultrasonic Cleaning Transducer/Oscillator

Ultrasonic oscillators, also known as ultrasonic vibrators, ultrasonic transducers, are one type of ultrasonic transducers and are the core components of ultrasonic cleaners. Industry standard name: ultrasonic transducer, which belongs to piezoelectric ceramic material, one of the main accessories of ultrasonic cleaning machine.
Ultrasonic oscillator is a device that converts electrical energy and mechanical energy (sonic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the device by acoustic impedance matching before and after radiation cover. The frequency is fixed at the time of production. According to the customer's needs, custom transducers of different frequencies, and the production of a good transducer oscillator, can only be fixed at this frequency.
With the development of ultrasonic technology and the deepening of the application of power-type ultrasonic equipment, the performance of power-type ultrasonic equipment depends largely on the quality of the power-type piezoelectric ceramic vibrator.

odel Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ


20KHz/22KHz 100W HESEN Ultrasonic Cleaning Transducer/Oscillator
20KHz/22KHz 100W HESEN Ultrasonic Cleaning Transducer/Oscillator
