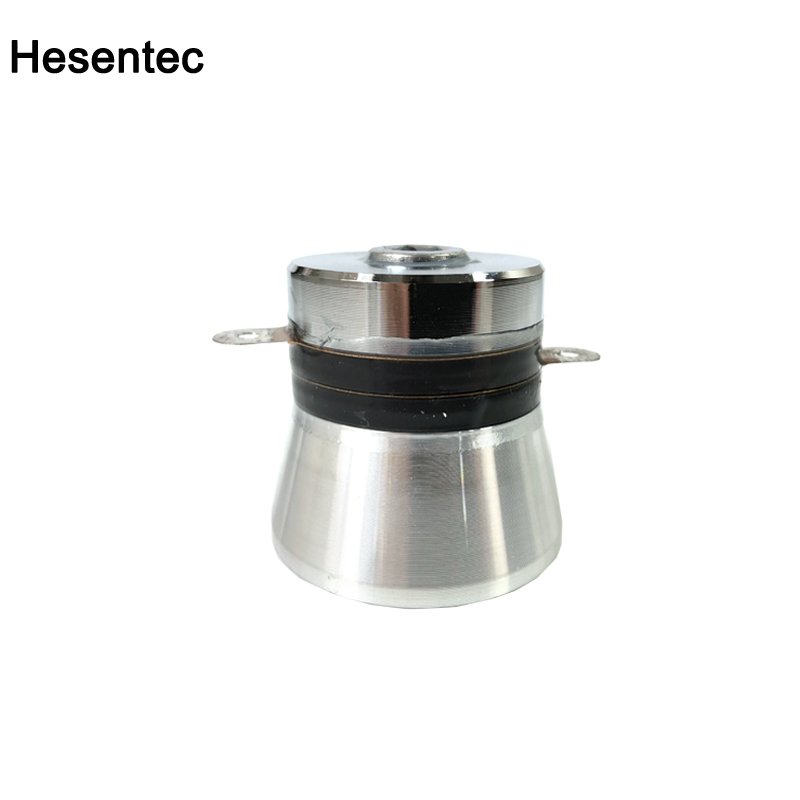

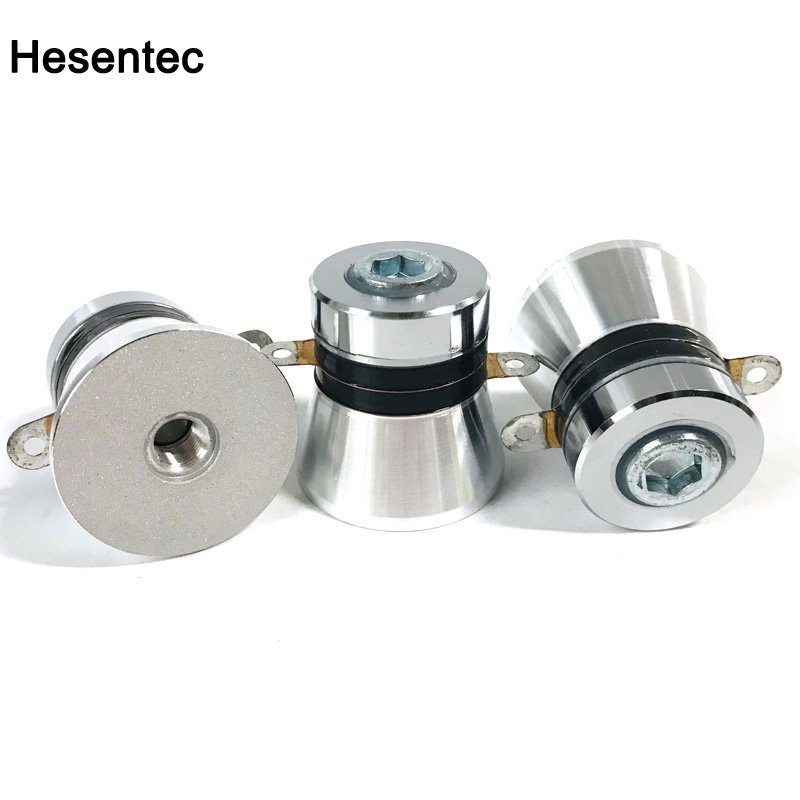

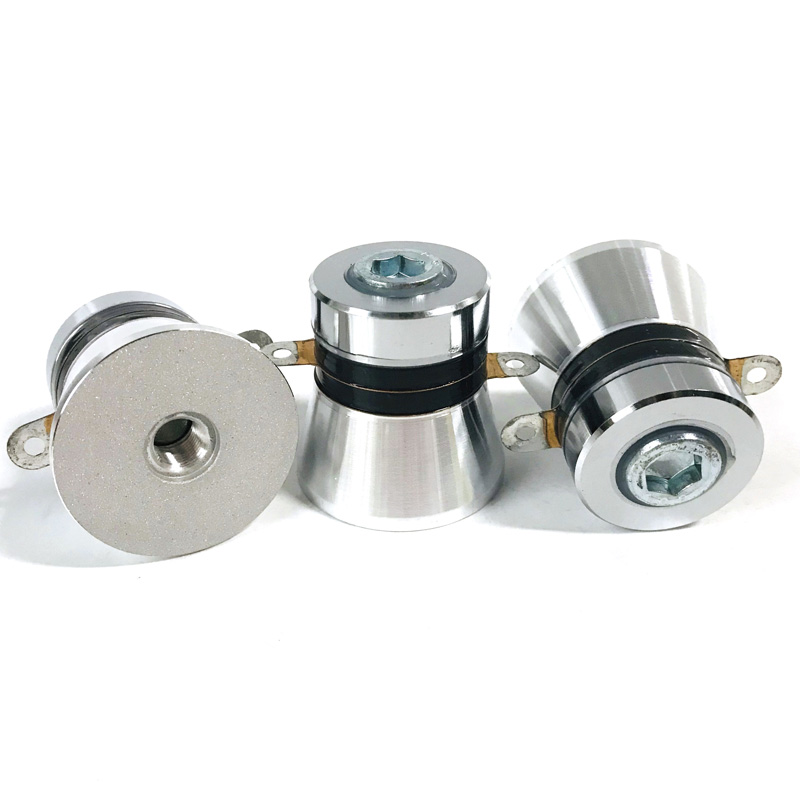

  • 40KHz 50W/60W/100W Hesen Ultrasonic Cleaning Transducer/Vibrator

40KHz 50W/60W/100W Hesen Ultrasonic Cleaning Transducer/Vibrator

40KHz 50W/60W/100W Hesen Ultrasonic Cleaning Transducer/Vibrator Introduction

40KHz 50W/60W/100W Hesen High Quality Ultrasonic Cleaning Transducer/Vibrator


Ultrasonic cleaning transducers are devices used for energy conversion and are devices that convert one form of energy into another. In the field of acoustic research, transducers mainly refer to electroacoustic transducers, which can convert between electrical energy and acoustic energy.
Our advantage:
1. Complete range: Ultrasonic transducer frequency from 17KHZ-200KHZ, to meet different customer needs.
2. Technical advantages: years of production experience, mature technology, such as quality problems within one year replacement.
3. Price advantage: professional production, direct sales, reduce intermediate links, and directly benefit users.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ


40KHz 50W/60W/100W Hesen Ultrasonic Cleaning Transducer/Vibrator
40KHz 50W/60W/100W Hesen Ultrasonic Cleaning Transducer/Vibrator
