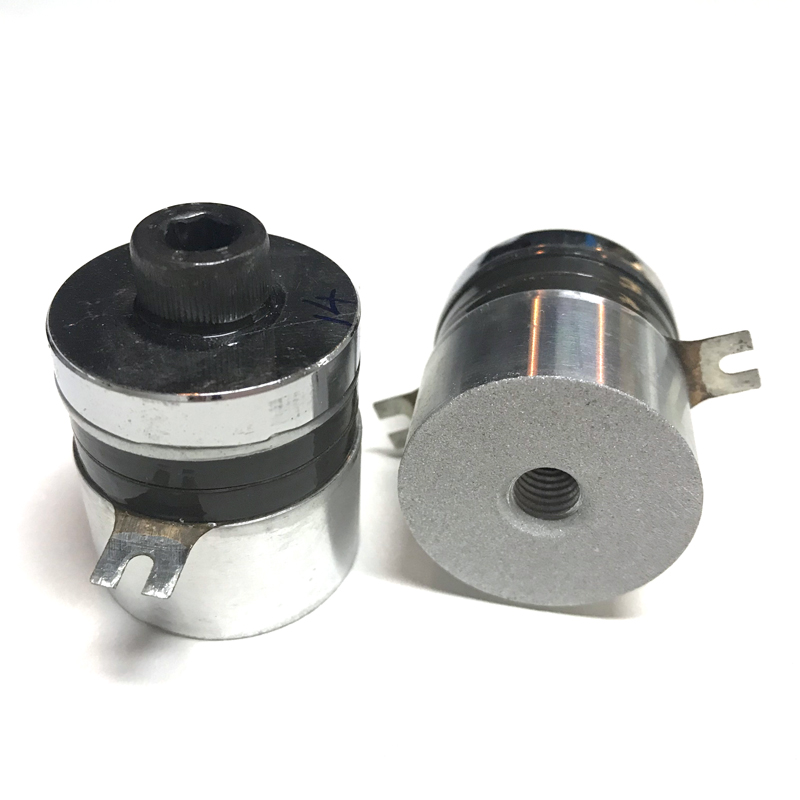

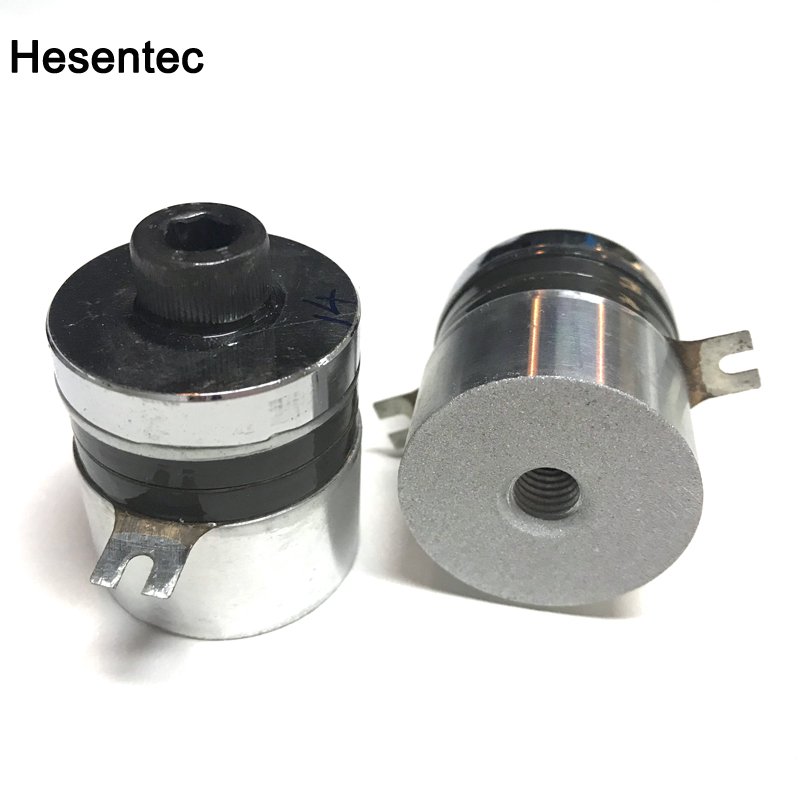

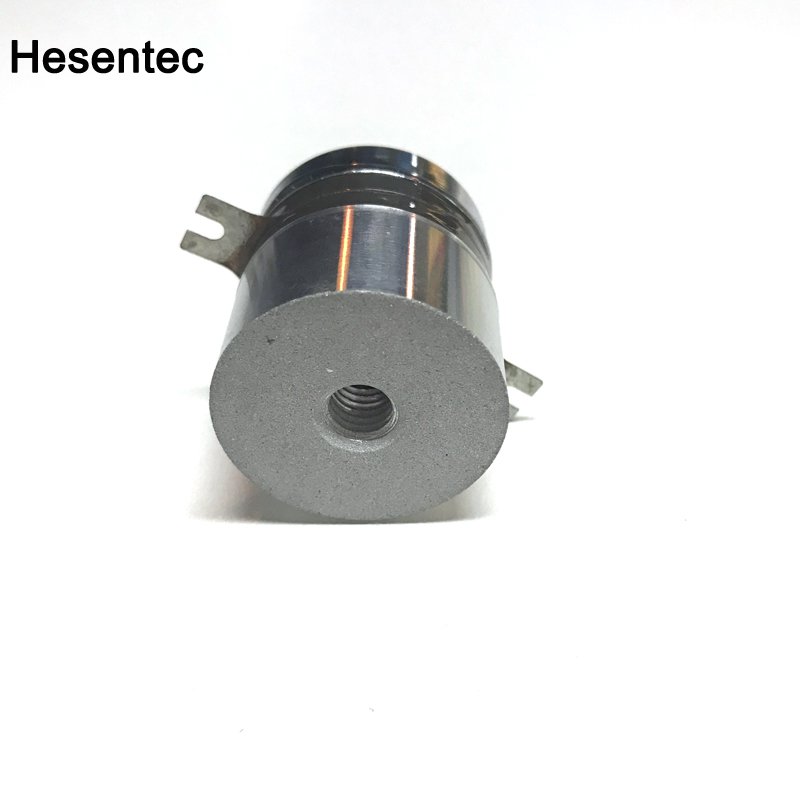

54KHz Hesen Ultrasonic Cleaning Transducer Vibrating Transducer
The company mainly produces ultrasonic equipment, ultrasonic accessories, ultrasonic cleaner, non-standard ultrasound, ultrasonic transducer, ultrasonic generator, ultrasonic vibration plate, etc. The company has a complete and scientific quality management system. With integrity, strength, product quality and high quality service, it has been recognized by the industry. Welcome friends from all walks of life to visit our company, guidance and business negotiation.
Ultrasound cleaning is precisely through the transducer generated by the ultrasonic vibration, cavitation effect in the water produced by the instantaneous high-pressure cavitation, impact the cleaned object and achieve good cleaning effect.
Ultrasound cleaning transducer is a kind of medium power transducer which works continuously. Usually, the average value of continuous work is used to calculate and constant its power.
Features:
1. Low heat
2. Good thermal stability
3. Frequency and static capacitance consistency strong.
4. Resonance impedance is low.
5. The average length of life.
Payment Terms:Prepaid by Bnak, T/T and West Union, ect.
Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.
|
Model |
Frequency |
Capacitance |
Resonance Impedance |
Size |
Power |
Insulation resistance |
|
（KHz） |
（pF） |
（Ω） |
Radiation Head*Height (mm) |
（W） |
(2500VDC) |
|
HS-8SH-3825 |
25±0.8 |
3800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-8SH-3828 |
28±0.5 |
3800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-8SH-3833 |
33±0.5 |
3800±10% |
≤20Ω |
48*61 |
60w |
≥100MΩ |
|
HS-8SH-3840 |
40±0.5 |
3800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-8SH-4520 |
21.5±0.8 |
5600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-8SH-4528 |
28±0.5 |
5600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-8SH-5028 |
28±0.5 |
7200±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-3528 |
28 ±0.5 |
4000±10% |
≤20Ω |
45*79 |
50w |
≥100MΩ |
|
HS-4AH-3540 |
40 ±1.0 |
4000±10% |
≤20Ω |
45*55 |
50w |
≥100MΩ |
|
HS-4SH-3825 |
25±0.8 |
4800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-4SH-3828 |
28±0.5 |
4800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-4SS-3833 |
33±0.5 |
4800±10% |
≤20Ω |
48*62 |
60w |
≥100MΩ |
|
HS-4SH-3840 |
40±0.5 |
4800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-4SH-4520 |
22±0.5 |
7600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-4SH-4525 |
25±0.5 |
7600±10% |
≤20Ω |
67*76 |
100w |
≥100MΩ |
|
HS-4SH-4528 |
28±0.5 |
7600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-4SH-4540 |
40±0.5 |
7600±10% |
≤20Ω |
55*53 |
100w |
≥100MΩ |
|
HS-4SH-5028 |
28±0.5 |
9600±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-38100 |
100±1.5 |
4800±10% |
≤25Ω |
40*57 |
60w |
≥100MΩ |
|
HS-4AS-38120 |
120±1.5 |
4800±10% |
≤25Ω |
40*58 |
60w |
≥100MΩ |
|
HS-4AH-25200 |
200±2.0 |
2300±10% |
≤35Ω |
30*35 |
20w |
≥100MΩ |
