  • 20KHz-40KHz Frequency And Power Adjustable Ultrasonic Generator

20KHz-40KHz Frequency And Power Adjustable Ultrasonic Generator

20KHz-40KHz Frequency And Power Adjustable Ultrasonic Generator Introduction

20KHz-40KHz Frequency And Power Adjustable Ultrasonic Generator

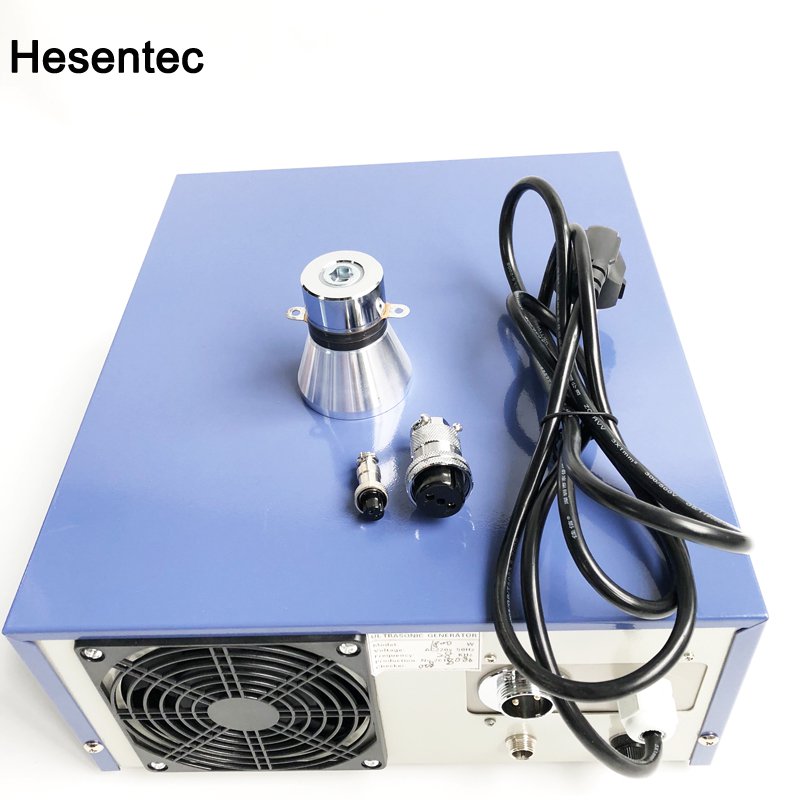

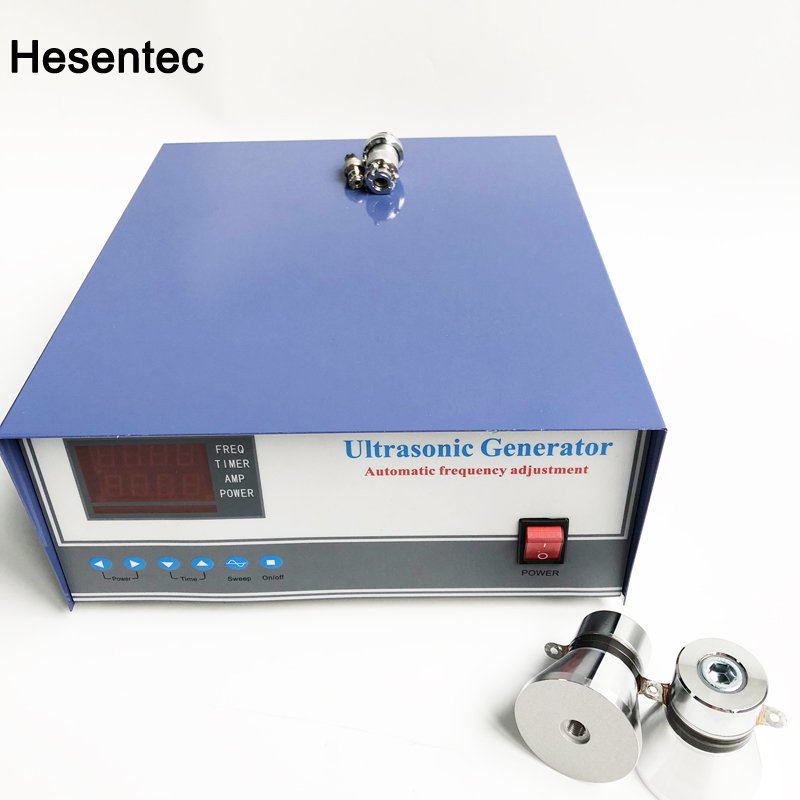

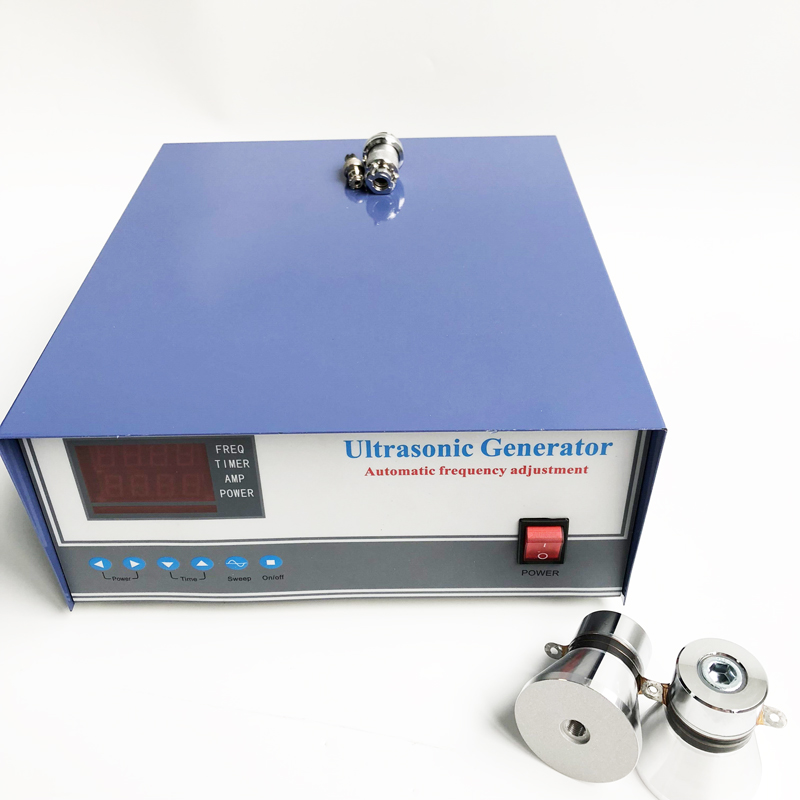

Ultrasonic Generator Detail
This product adopts advanced micro-processing control and digital frequency synthesis technology. The adaptive frequency fuzzy control can meet the sweep width and speed of different ultrasonic transducers, making the ultrasonic energy distribution more uniform and exerting ultrasonic performance at any time. Digital power adjustment and time adjustment are more convenient to use. It can be equipped with a remote control port for easy application in a fully automated production line.

Ultrasonic Generator product features
The power and frequency are steplessly adjustable, so that the output matching effect is achieved and the resonance work efficiency is higher. Using advanced microcomputer control technology and a new circuit design concept, a new generation of multi-function ultrasonic cleaning machine power source is newly introduced.


Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


20KHz-40KHz Frequency And Power Adjustable Ultrasonic Generator
20KHz-40KHz Frequency And Power Adjustable Ultrasonic Generator
