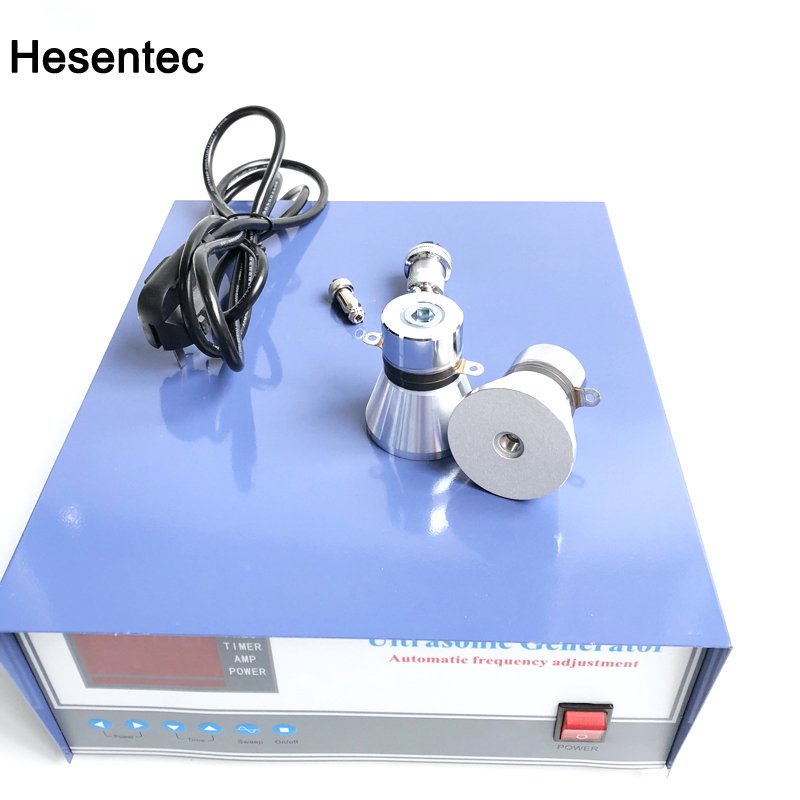

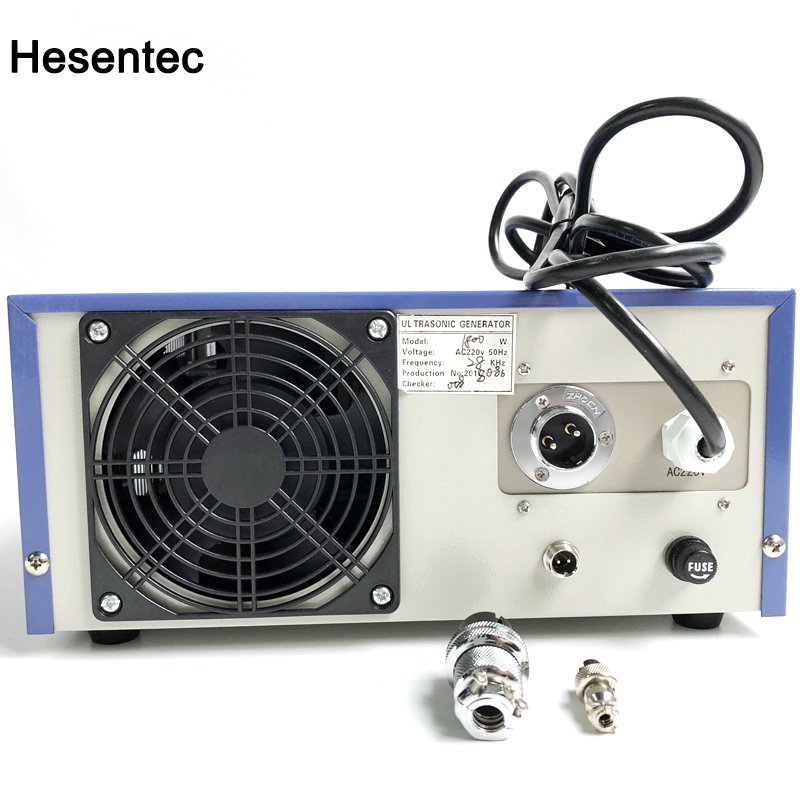

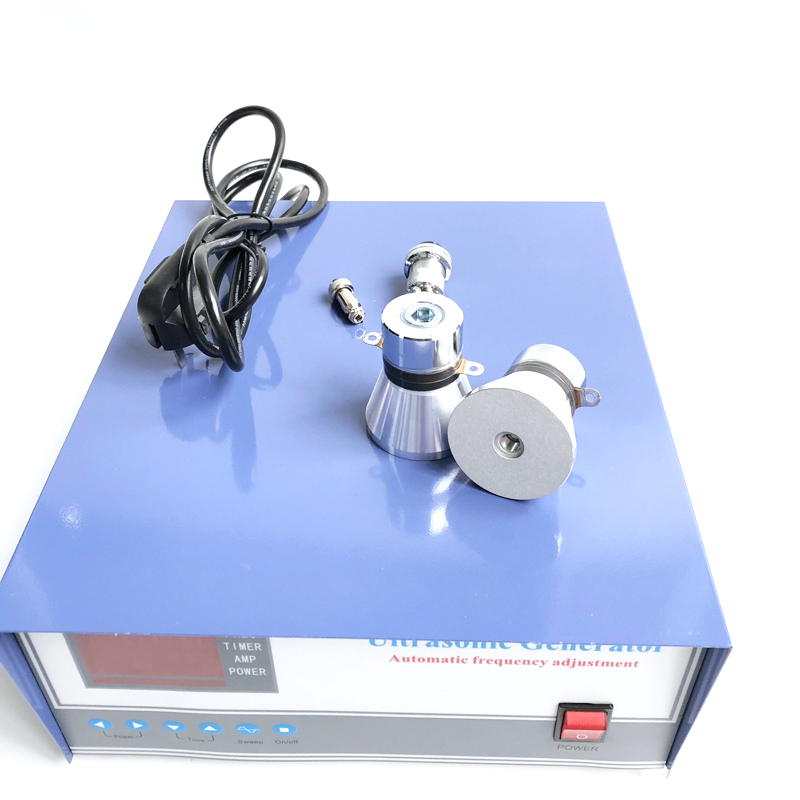

  • 300W-3000W Digital Ultrasonic Power Supply Generator For Cleaner

300W-3000W Digital Ultrasonic Power Supply Generator For Cleaner

300W-3000W Digital Ultrasonic Power Supply Generator For Cleaner Introduction

300W-3000W Digital Ultrasonic Power Supply Generator For Cleaner

A digital ultrasonic generator comprising a rectifying filter circuit, an inverter circuit, a matching circuit, and a transducer sequentially connected, and an oscillation and driving circuit for outputting a control signal to a power switch tube in the inverter circuit The inverter circuit is a half-bridge inverter circuit; and the method further includes: a control unit, the control unit is formed with a single-chip frequency automatic tracking system, and adopts a frequency conversion search mode to make a current input to the half-bridge inverter circuit Always maintaining a maximum value, thereby ensuring that the transducer always operates in a resonant state; detecting a current input to the rectifying and filtering circuit, and outputting a current detecting circuit for the current detecting signal to the control unit; a frequency tracking signal output of the unit is coupled to the first digital potentiometer that outputs a frequency adjustment signal to the oscillation and drive circuit; and an input button coupled to the control unit.
Power control: The power is regulated by the Japanese Sansei thyristor, and the performance is stable.
Internal structure: Unique anti-corrosion design, not affected by the working environment, adapt to various work sites.
Power range: automatic sweep function. 10%-100% steplessly adjustable within the power allowable range.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


300W-3000W Digital Ultrasonic Power Supply Generator For Cleaner
300W-3000W Digital Ultrasonic Power Supply Generator For Cleaner
