  • 17KHz-200KHz Digital Ultrasonic Transducer Generator Controller

17KHz-200KHz Digital Ultrasonic Transducer Generator Controller

17KHz-200KHz Digital Ultrasonic Transducer Generator Controller Introduction

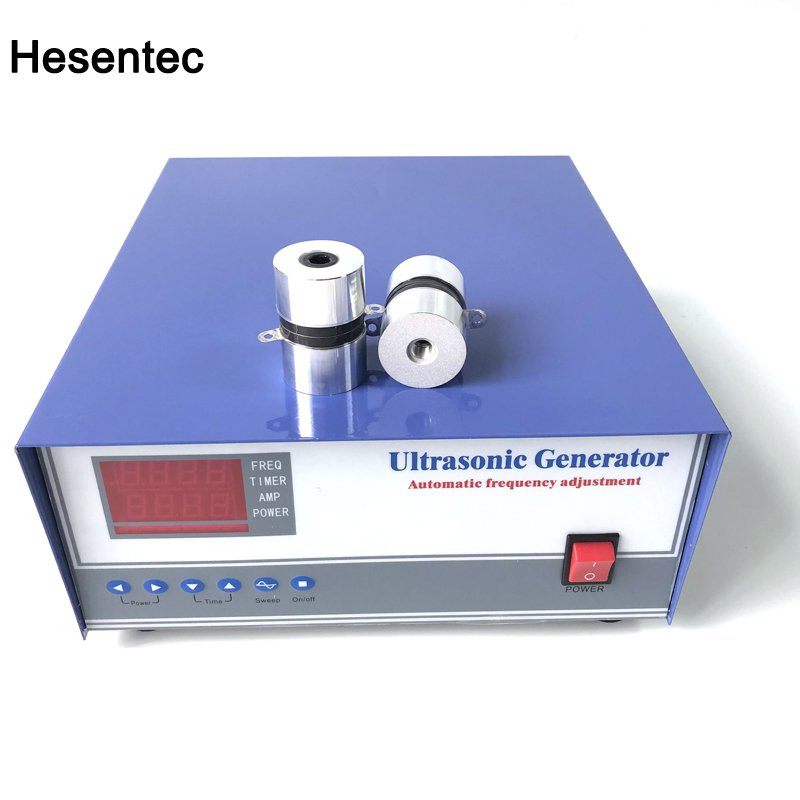

17KHz-200KHz Digital Ultrasonic Transducer Generator Controller

The digital ultrasonic transducer generator control box circuit adopts advanced technologies such as its exciting circuit, frequency automatic tracking and frequency sweeping working mode under microcomputer control. Compared with the traditional control box, it has stable and reliable operation and continuously adjustable ultrasonic power, which can maximize the potential of the transducer. The operating frequency is automatically tracked for better output matching, more powerful power and higher efficiency.

Digital Ultrasonic Transducer Generator Function:
(1) Automatic follow-up: Once the device has been initially set up, it can be operated continuously without the need to adjust the generator.
(2) Frequency fine adjustment: The frequency is adjusted so that the ultrasonic transducer always works at the optimum state, and the efficiency reaches the maximum, and the adjustment range is 2%.
(3) It can adjust various parameters in real time according to different requirements of users: such as power, amplitude, running time, etc.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

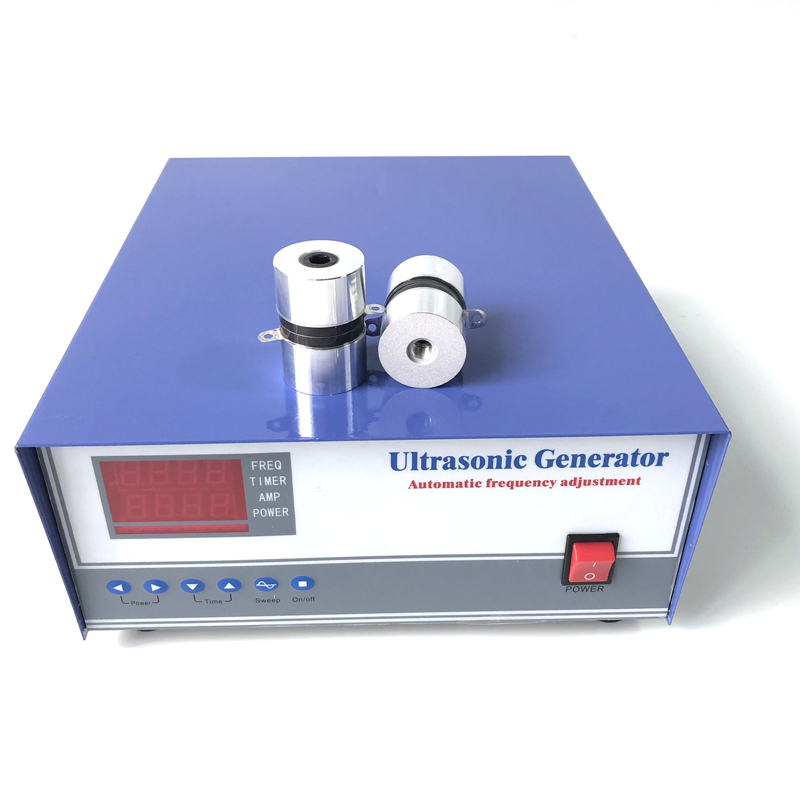

17KHz-200KHz Digital Ultrasonic Transducer Generator Controller

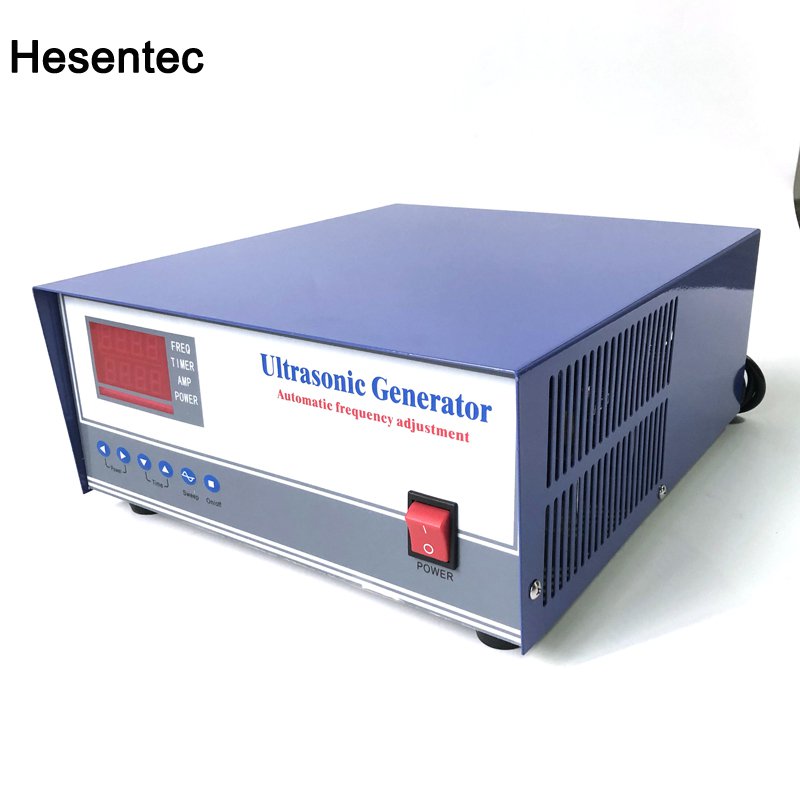

17KHz-200KHz Digital Ultrasonic Transducer Generator Controller
