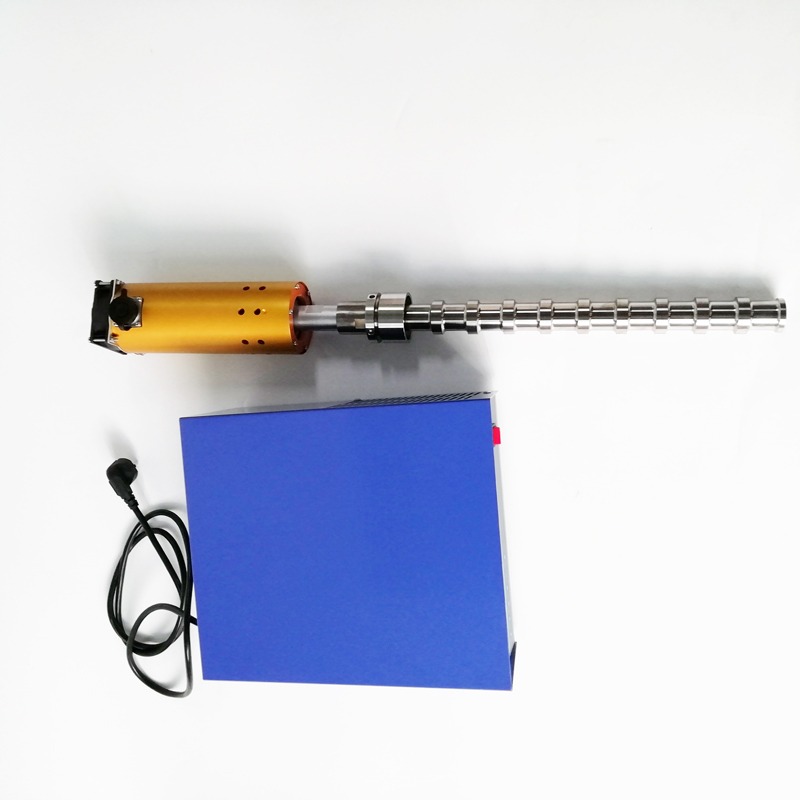

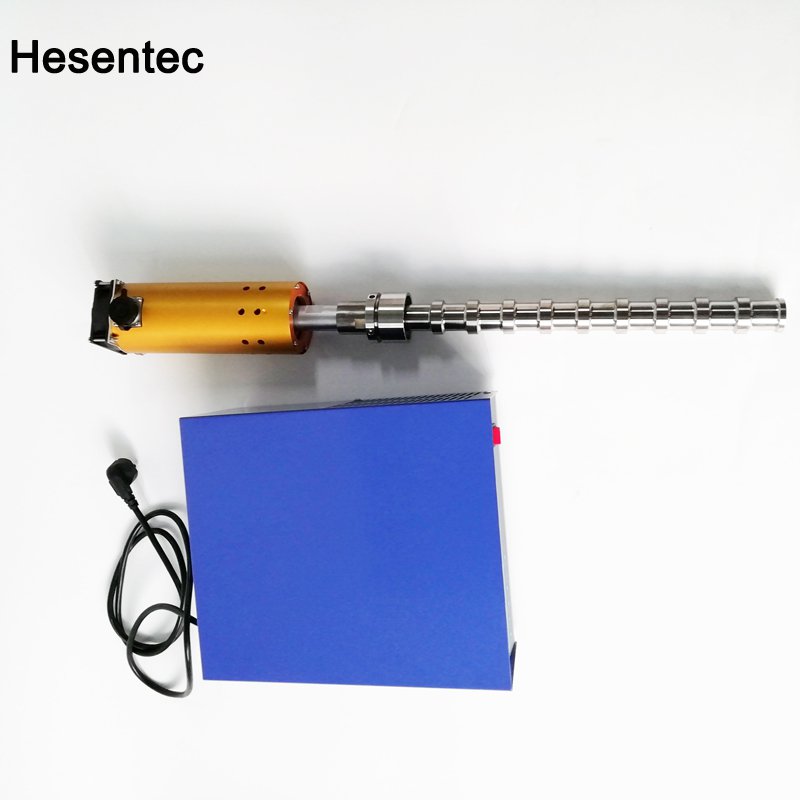

1000W 220VUltrasonic Homogenizing Emulsified Vibrating Rod

1000W 220VUltrasonic Homogenizing Emulsified Vibrating Rod

Ultrasonic vibrator
Ultrasonic vibrating rod features
More wide range of applications and longer service life
Advantage
Ultrasonic vibrating rod seal waterproof, safe to use
The front end of the ultrasonic vibrating rod tool head is attached to the outer wall of the kettle or into the cavity of the kettle body. The ultrasonic transducer can send ultrasonic waves to the chemical reactants in the cavity, and the liquid to be treated is ultrasonic. The function of cavitation can cause changes in the activity of the reaction system, destroy the solvent structure of the chemical reactants in the cavity, generate instantaneous high temperature and high pressure sufficient to initiate chemical reactions, form a local high energy center, and promote the smooth progress of the chemical reaction. The main factor of the catalytic reaction of the vibrating rod.
The ultrasonic vibrating rod gathers the ultrasonic probe to concentrate the energy, and the strong sound intensity can be obtained on the end face of the ultrasonic radiation. Due to the energy gathering effect of the horn, the sound energy density is greatly improved; the reaction can be accurately designed according to the density of the acoustic energy. The emitting end face of the probe is generally designed to be detachable, so that the probe of the appropriate size of the end face can be selected at any time according to the required sound intensity. At the same time, when the probe is severely corroded by cavitation, only the end portion needs to be replaced without having to replace the price. Expensive whole vibration rod.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
