  • 1500W 20KHz Ultrasonic Titanium Alloy Ultrasonic Vibrating Rod

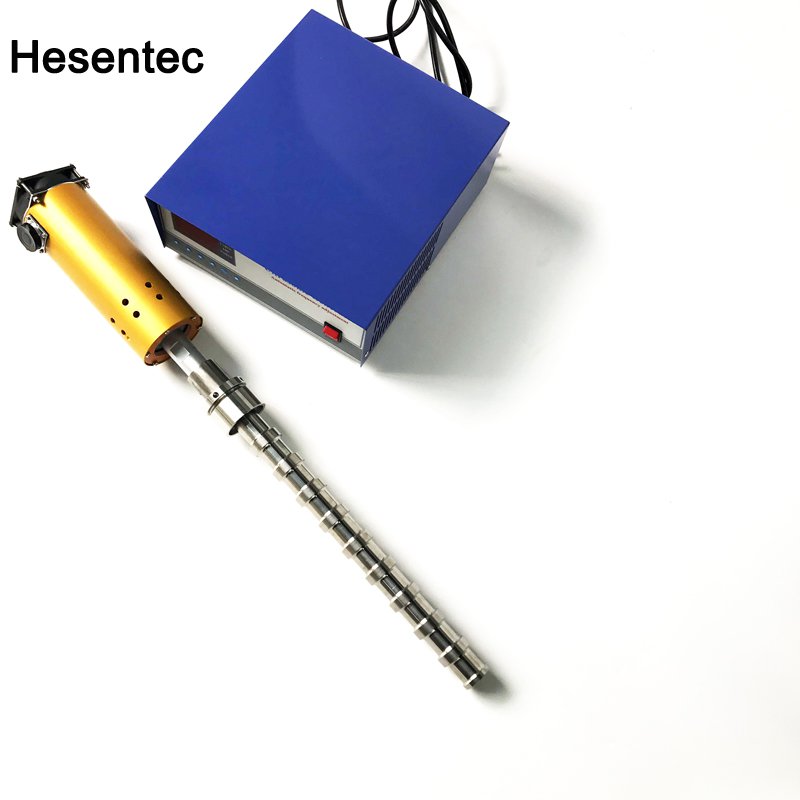

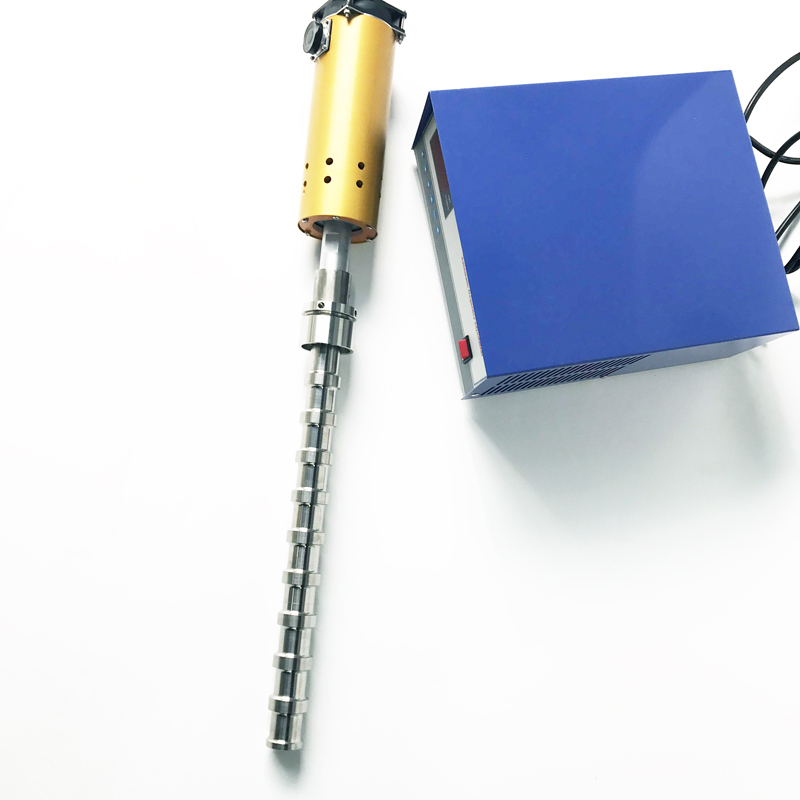

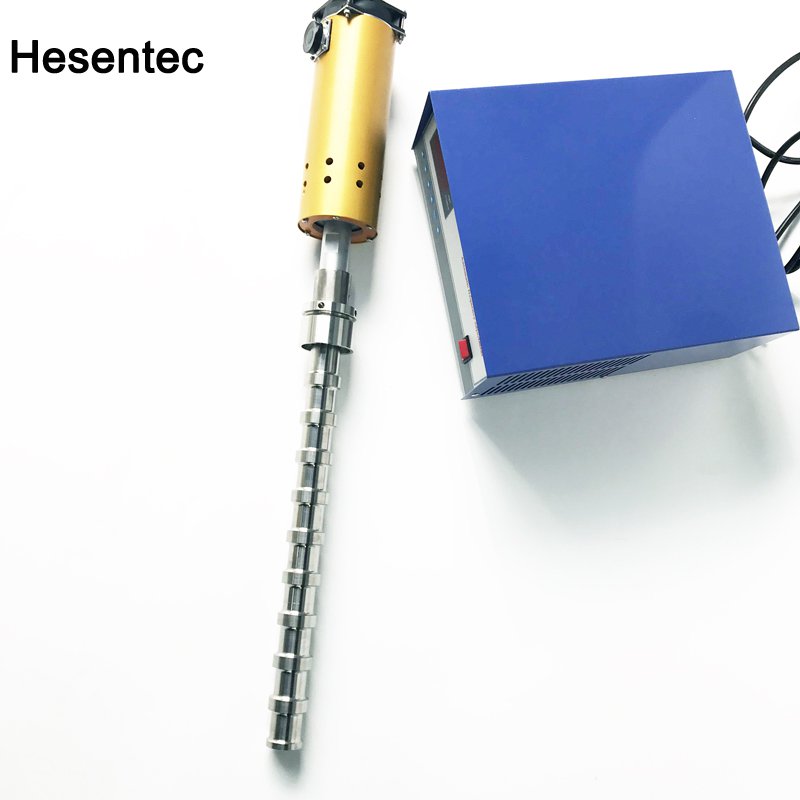

1500W 20KHz Ultrasonic Titanium Alloy Ultrasonic Vibrating Rod

1500W 20KHz Ultrasonic Titanium Alloy Ultrasonic Vibrating Rod Introduction

1500W 20KHz Ultrasonic Titanium Alloy Ultrasonic Vibrating Rod

The ultrasonic reactor is a vibrating rod based on the principle that the ultrasonic wave has an alternating cycle of positive and negative pressures during the transmission process.
1. Biological industry: Ultrasonic vibrators are widely used in emulsification, separation, homogenization, extraction, catalytic reaction, etc. to improve productivity; such as essential oil extraction, natural pigment extraction, polysaccharide extraction, flavonoid extraction, alkaloid extraction, polyphenol extraction, Extraction of organic acids, oil extracts, spices, animal and vegetable oils, pectin and vitamins; 2. Experimental research: cell pulverization, product pulverization, material dispersion (suspension preparation) and coagulation research 3. Chemical industry: Ultrasonic emulsification and homogenization, ultrasonic gel liquefaction, resin defoaming, pipe, tank, kettle cleaning. Filtration, beneficiation, separation of rare earth and various non-polar mineral powders, and desulfurization and ash removal of coal. 4. Ultrasonic biodiesel production accelerates and strengthens various chemical reactions in various chemical production. In the process of refining biodiesel with waste oil and palm oil, the catalytic effect of ultrasonic vibrating rod is very amazing, the efficiency is increased by more than ten times, and there will be broad development prospects in the petrochemical industry; 5. Pollution water quality degradation: water treatment, treatment Microorganisms, degradation of toxic organic pollutants, biodegradation treatment, etc. Landscape lake, river algae elimination, algae inhibition 6, food and cosmetics industry: ultrasonic vibrating rods are used for uniform mixing, such as alcohol deuteration, cosmetic particles are fine, nanoparticle preparation; 7, graphene, new materials: Graphene dispersion, graphene nanoparticle preparation, silicon carbide deagglomeration; o com8, system collar: Chinese medicine extraction, cell wall fragmentation, particle dispersion; Tips: the effect of ultrasound use and temperature, working conditions, materials and other factors related. Under normal conditions, the thinner the material, the better the ultrasound effect. The standard ultrasonic vibrating bar temperature should not exceed 100 degrees Celsius; the emulsified viscosity should not exceed 10,000. Other high temperature, high pressure and high viscosity conditions can be customized according to working conditions.
The tubular vibrating rod can be extended according to the user's requirements (extended length does not exceed 700mm), and the flange or thread can be made according to the user's installation interface requirements; the ultrasonic horn and the tool head can also be customized according to the actual needs of the customer. Customized stainless steel, aluminum alloy and other materials and shapes; if the material is toxic, volatile, corrosive, flammable and explosive, the company also has ultrasonic vibrators equipped with special anti-corrosion, explosion-proof and dust-proof. To solve a series of customer problems.

Tubular Equipment
Type		 Frequency
(KHz)		 Ultrasound
Output(W)		 Total Length
(mm)		 Diameter
(mm)		 Static Capacity
(pF±10%)
HS-ZDB1000W 20 1000 500 Φ50-55 68000
HS-ZDB1500W 20 1500 850 Φ50-55 68000
HS-ZDB2000W 20 2000 1100 Φ50-55 132000

1500W 20KHz Ultrasonic Titanium Alloy Ultrasonic Vibrating Rod
1500W 20KHz Ultrasonic Titanium Alloy Ultrasonic Vibrating Rod
