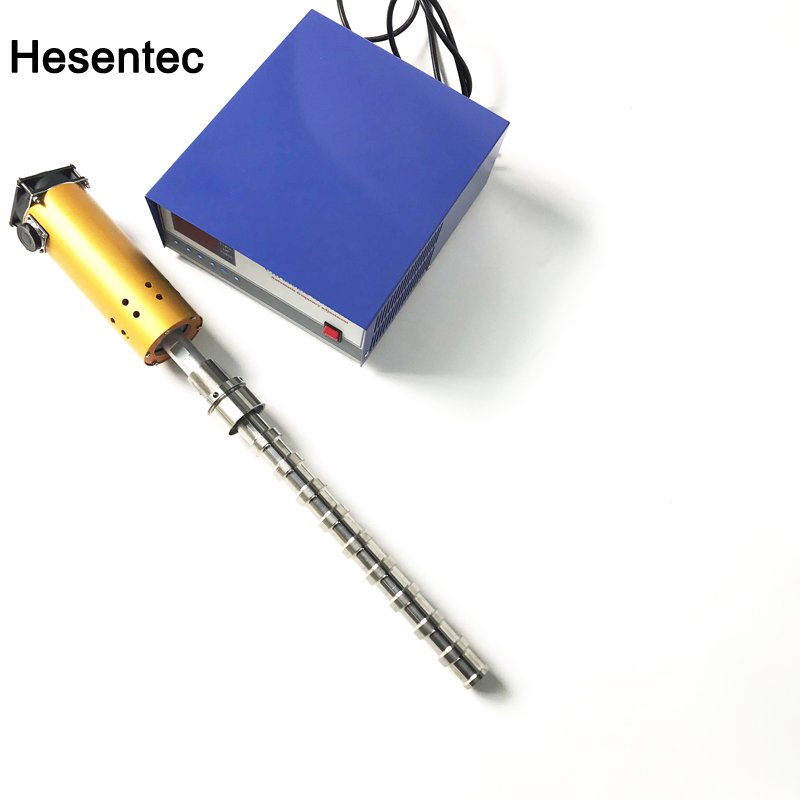

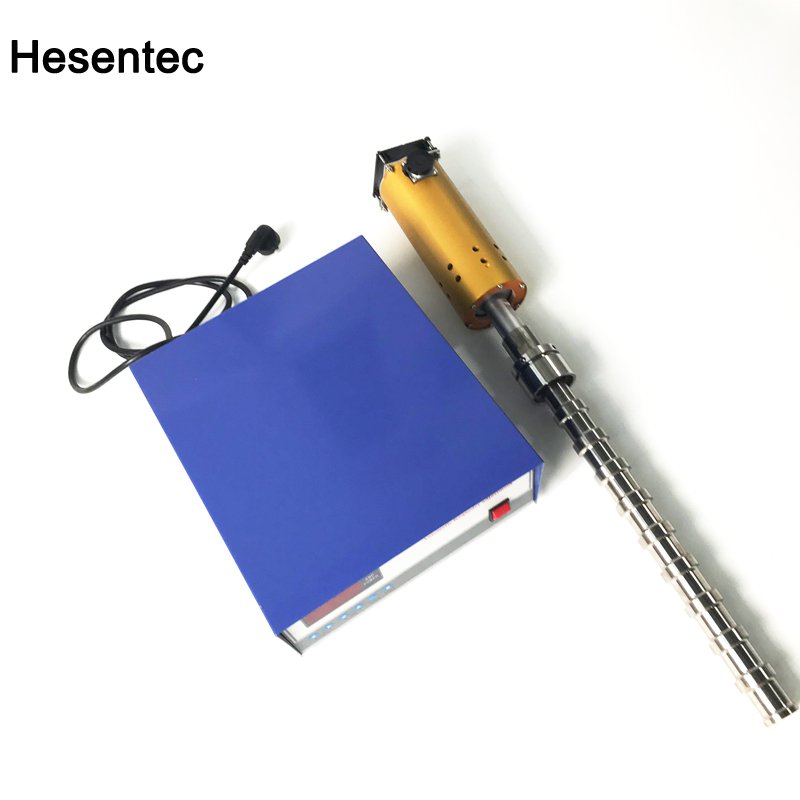

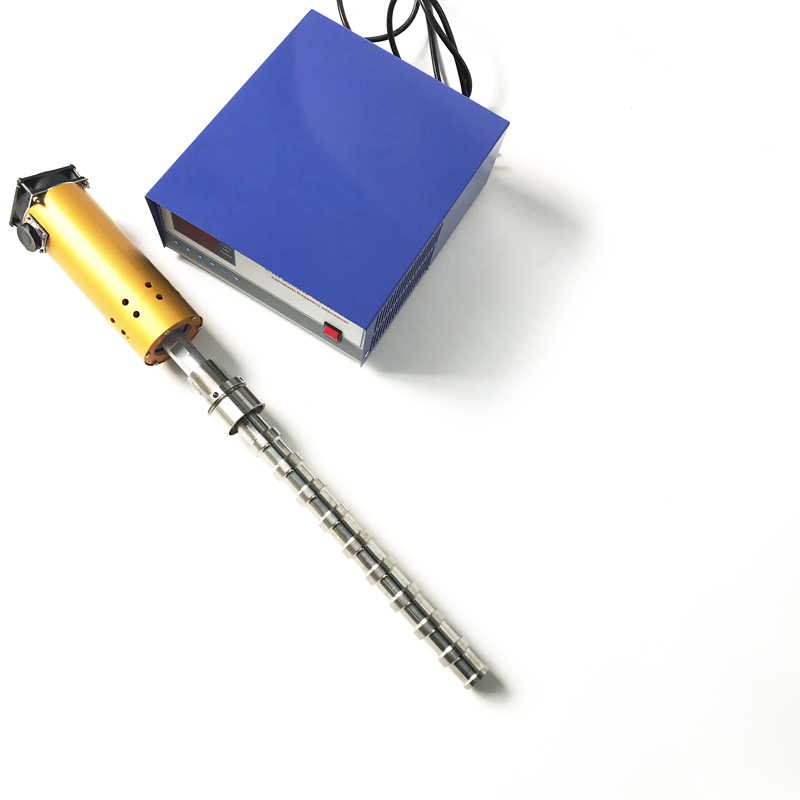

710mm Ultrasonic Vibration Cleaning Step Bar Ultrasonic Reator

710mm Ultrasonic Vibration Cleaning Step Bar Ultrasonic Reator

Ultrasonic dispersion processor description
High-intensity ultrasonic dispersion technology is an effective alternative to the above technology. When ultrasonic waves are introduced into the liquid, the ultrasonic waves in the liquid medium produce alternating high pressure (compression) and low pressure (dilution) cycles. Mechanical stress is used to attract electrostatic forces (such as van der Waals forces) that use particle aggregation. Ultrasonic cavitation in the liquid causes high velocity liquid jets of up to 1000 km/h (about 600 mph). Such a jet squeezes the liquid at high pressure between the particles and separates them from each other, with smaller particles accelerating and colliding with high velocity as the liquid ejects. This makes ultrasonic waves an effective means of dispersion and depolymerization, as well as grinding and fine grinding of micron and submicron sized particles.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
