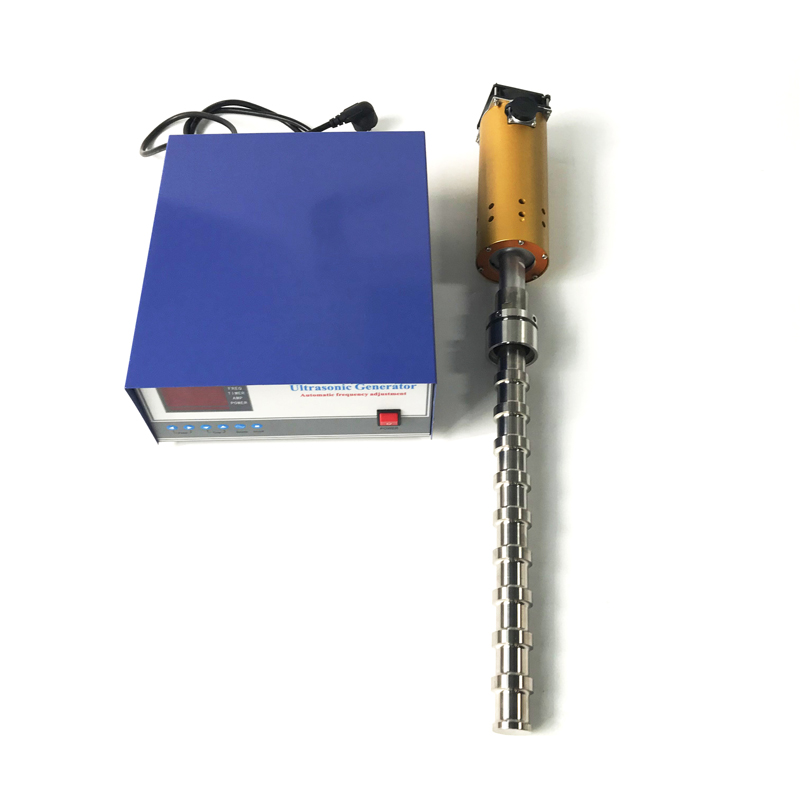

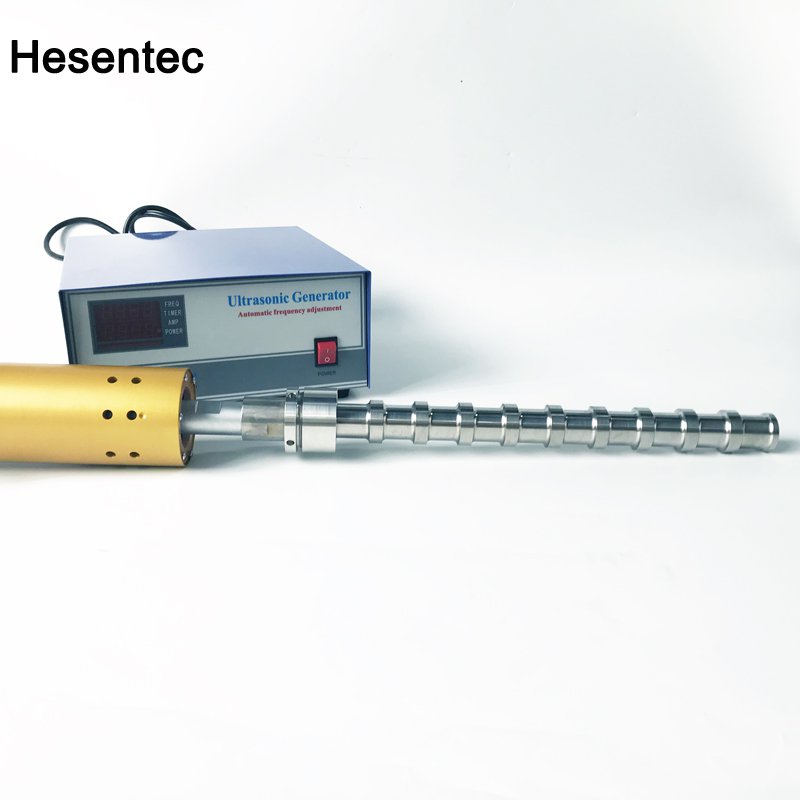

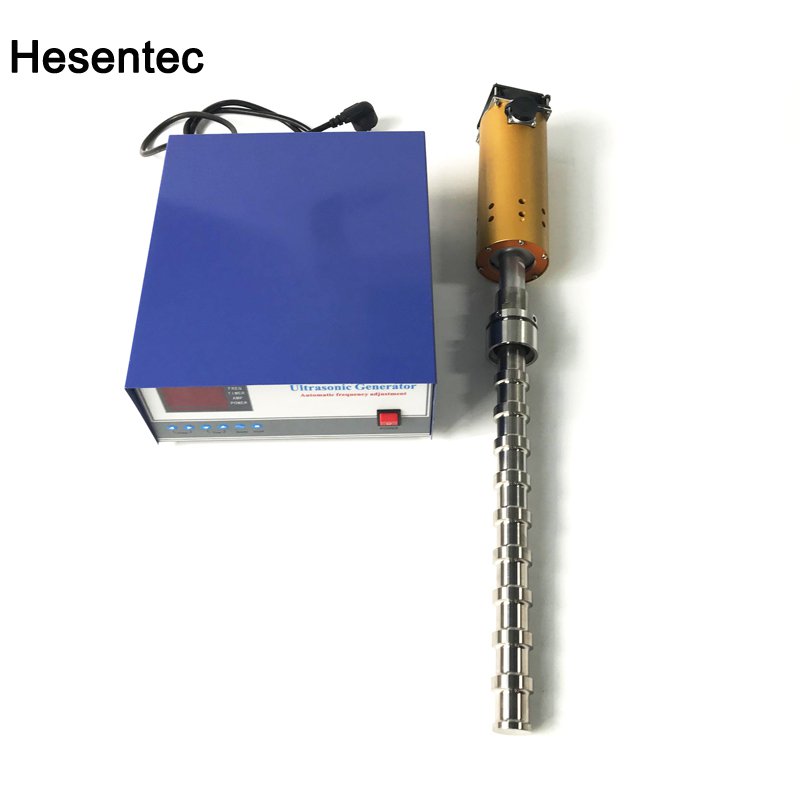

220V 20KHz 2000W Ultrasonic Vibration Rod For Biodiesel

220V 20KHz 2000W Ultrasonic Vibration Rod For Biodiesel Introduction

220V 20KHz 2000W Ultrasonic Vibration Rod For Biodiesel

Ultrasonic dispersion
  The role of power ultrasound in liquids is the dispersion effect. The dispersion of ultrasound in liquids relies primarily on the ultrasonic cavitation of the liquid.
There are two factors that determine the effect of dispersion: ultrasonic impact; ultrasonic radiation time.
When the flow of the treatment liquid is Q, the gap is c, and the area of the plate in the opposite direction is S, the average time t required for the specific particles in the treatment liquid to pass through this space is: t=c*S/Q. To improve the ultrasonic dispersion effect, it is necessary to control the three factors of the average pressure p of the treatment liquid, the gap c, and the ultrasonic irradiation time t(s).
Ultrasonic dispersion can be used without emulsifier. In many cases, emulsification can obtain particles of 1 μm or less. The formation of this high-quality emulsion is mainly due to the formation of ultrasonic cavitation near the dispersion tool. The chemical agent can disperse the paraffin in water, and the dispersed school has a diameter of less than 1 μm.

Tubular Equipment
Type		 Frequency
(KHz)		 Ultrasound
Output(W)		 Total Length
(mm)		 Diameter
(mm)		 Static Capacity
(pF±10%)
HS-ZDB1000W 20 1000 500 Φ50-55 68000
HS-ZDB1500W 20 1500 850 Φ50-55 68000
HS-ZDB2000W 20 2000 1100 Φ50-55 132000
220V 20KHz 2000W Ultrasonic Vibration Rod For Biodiesel
220V 20KHz 2000W Ultrasonic Vibration Rod For Biodiesel
