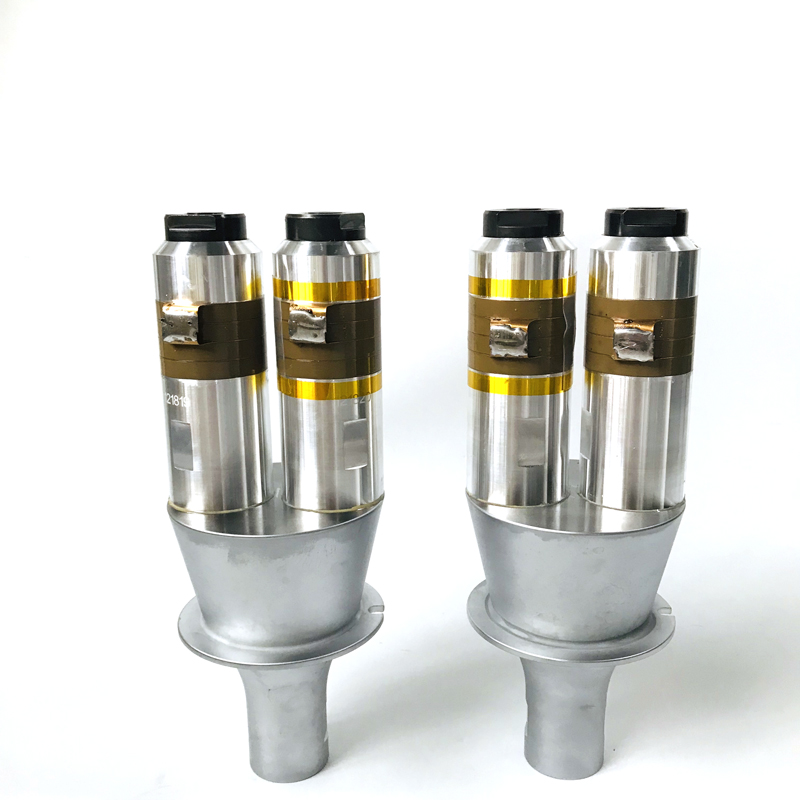

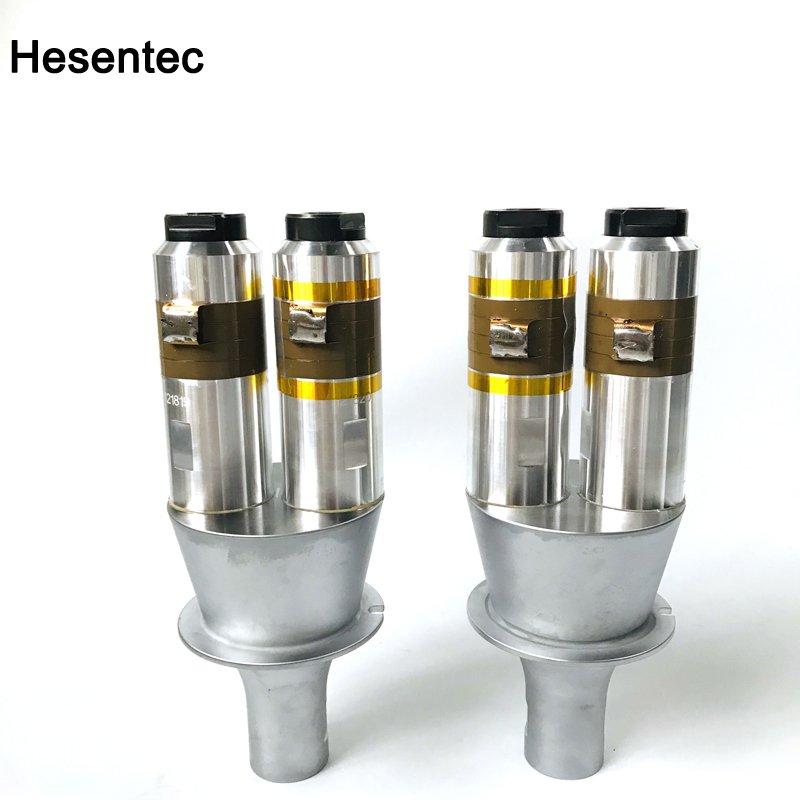

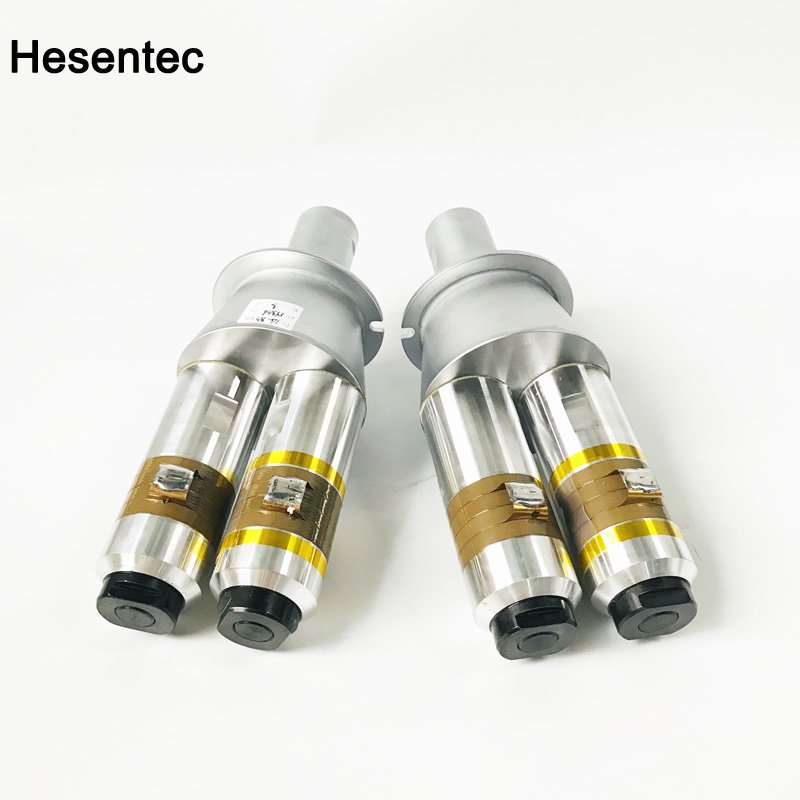

15K 4200W Big Power Ultrasonic Transdcuer For Face Mask Machine

15K 4200W Big Power Ultrasonic Transdcuer For  Face Mask Machine

Ultrasonic transducers can generate regular vibration under the excitation of an electric field, but the amplitude is generally about 10 μm. Such an amplitude is not enough to complete the welding and processing steps directly.
Therefore, after the transducer is connected with a properly designed horn, the amplitude of the ultrasonic wave can be changed within a large range. As long as the strength of the material is sufficient, the amplitude can exceed 100 μm.
Non-woven ultrasonic mask machine ultrasonic generator, electric box, and matching automatic ultrasonic welding equipment are one device that can switch multiple transducers at the same time, which greatly reduces the production cost of automated equipment.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
HS-HJHNQ152500 P8	153	M20×1.5	15	15	13000	2500
HS-HJHNQ152000 P8	167	M20×1.5	15	10	9500	2000
HS-HJHNQ151500 P4	171	M18×1.5	15	12	12500	1500
HS-HJHNQ151800 P4	118	M20×1.5	20	15	15000	1800
HS-HJHNQ202000 P8	128	M18×1	20	10	11000	2000
HS-HJHNQ202000 P8	124	M18×1.5	20	12	10000	1500
HS-HJHNQ20700 P8	112	1/2-20 UNF	20	15	9000	700
HS-HJHNQ20900 P8	133	1/2-20 UNF	20	15	10000	900
HS-HJHNQ20600 P8	121	M18×1.5	20	15	6000	600
HS-HJHNQ30500 P8	77	M10×1.5	30	5	5500	500
