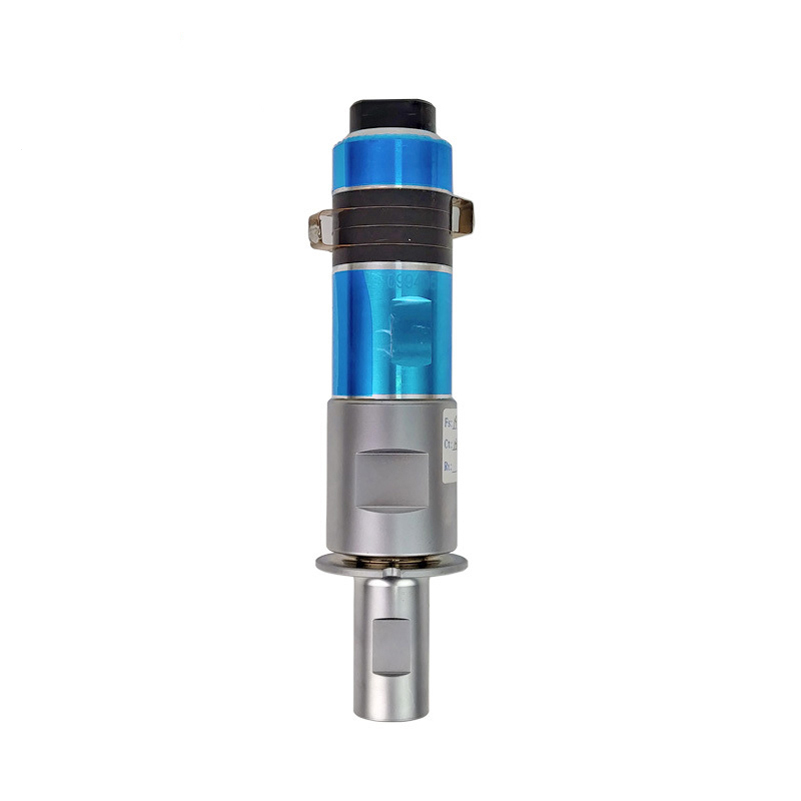

2000W/20khz ultrasonic welding transducer horn
The company supplies a large number of ultrasonic vibrator transducers (15KHZ, 20KHZ, 28KHZ, 30KHZ, 35KHZ, 40KHZ) complete specifications, high strength and durability, no cracking warranty for one year, the national package, welcome friends from all walks of life to inquire!
Ultrasonic transducer is the core device for converting electrical energy into mechanical energy (ultrasonic). The piezoelectric ceramic wafer adopts imported parts to ensure strong and stable ultrasonic power output.
Technical features:
Piezoelectric ceramic wafers use original imported parts to ensure strong and stable ultrasonic power output;
High efficiency: high mechanical quality factor, can achieve extremely high electro-acoustic conversion efficiency when working at the vibrating frequency point;
Large amplitude: the structure optimized by computer, the vibration speed ratio is high, and the front cover amplitude is large;
High power: under the action of prestressed prestressed screw, the energy of piezoelectric ceramics is maximized;
Good heat resistance: low resonance impedance, low heat generation and wide temperature range.
Type |
Full-length(mm) |
Joint Bolt(mm) |
Frequency(KHz) |
Resonance Impedance(Ω) |
Capacity(pF) |
Input Power
(W) |
HS-HJHNQ152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
HS-HJHNQ152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
HS-HJHNQ151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
HS-HJHNQ151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
HS-HJHNQ202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
HS-HJHNQ202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
HS-HJHNQ20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
HS-HJHNQ20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
HS-HJHNQ20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
HS-HJHNQ30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
HS-HJHNQ28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
HS-HJHNQ28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
HS-HJHNQ28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
HS-HJHNQ202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
HS-HJHNQ201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
HS-HJHNQ201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
HS-HJHNQ201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
HS-HJHNQ20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
HS-HJHNQ152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
HS-HJHNQ35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
HS-HJHNQ38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
HS-HJHNQ38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |
