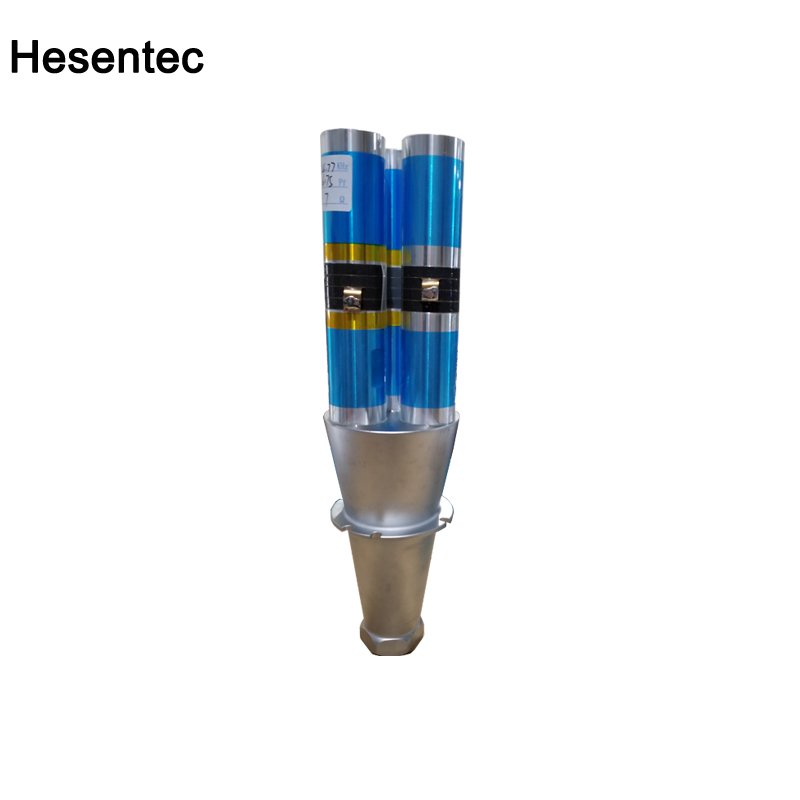

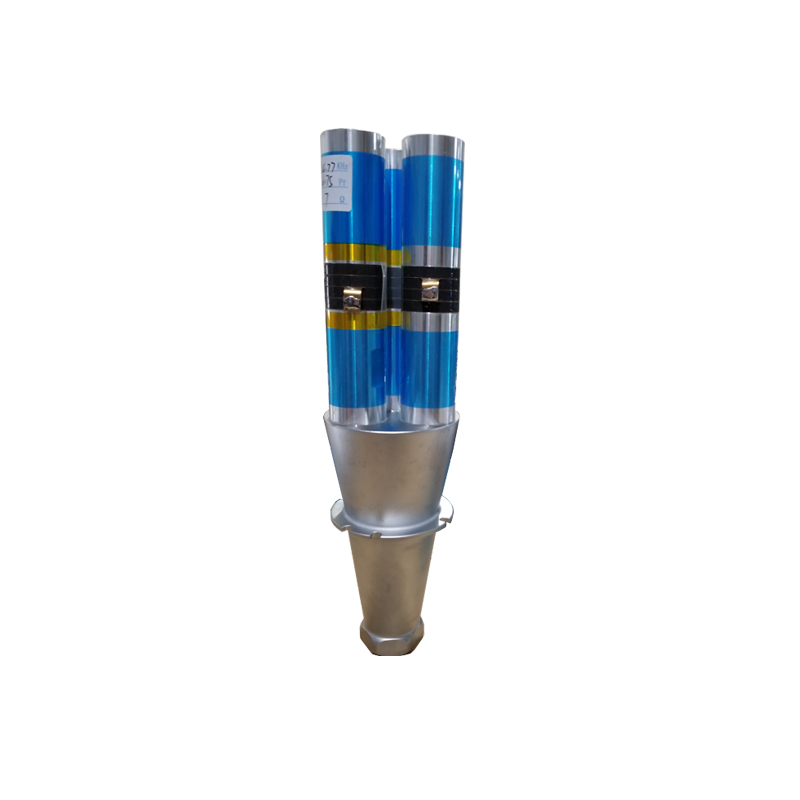

15K2600W ultrasonic transducer / vibrator
Assembly precautions for each component
The main parts of the ultrasonic vibration system, such as transducers, horns, tool heads, etc., are connected by a central bolt.
1. Check that the contact surface should be smooth and free of scratches. If there are any scratches, use a metallographic paper with a number of zero or more to lightly polish. It is required to smooth the defect without damaging the flatness of the contact surface.
2. Clean the screws, screw holes and contact surfaces with a volatile, non-corrosive detergent.
3. Thoroughly clean the screws, screw holes and contact surfaces.
4. All connecting screw holes should be perpendicular to the contact surface.
5. Apply a thin layer of grease (or butter and petrolatum) to the contact surface before tightening. Be careful not to apply silicone grease to the connecting screws and screw holes.
6. Carefully tighten the two parts. Adjust the appropriate tightening torque according to the specifications of the connecting screws. When possible, tighten it properly.
7. If you loosen the joint surface again, you should not see any scars.
8. The amplitude of the vibration system is evenly distributed by hand, no strange sound, no local severe fever.
9. After re-opening the joint surface after working for a period of time, there should be no signs of oxidation or ablation. Otherwise, the contact here is not good, and the ultrasonic energy is seriously lost here.
Type |
Full-length(mm) |
Joint Bolt(mm) |
Frequency(KHz) |
Resonance Impedance(Ω) |
Capacity(pF) |
Input Power
(W) |
HS-HJHNQ152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
HS-HJHNQ152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
HS-HJHNQ151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
HS-HJHNQ151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
HS-HJHNQ202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
HS-HJHNQ202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
HS-HJHNQ20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
HS-HJHNQ20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
HS-HJHNQ20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
HS-HJHNQ30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
HS-HJHNQ28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
HS-HJHNQ28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
HS-HJHNQ28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
HS-HJHNQ202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
HS-HJHNQ201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
HS-HJHNQ201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
HS-HJHNQ201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
HS-HJHNQ20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
HS-HJHNQ152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
HS-HJHNQ35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
HS-HJHNQ38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
HS-HJHNQ38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |
