Hesen Mask 2000W/20KHz/15KHz Ultrasonic Welder Transducer

Hesen Mask 2000W/20KHz/15KHz Ultrasonic Welder Transducer

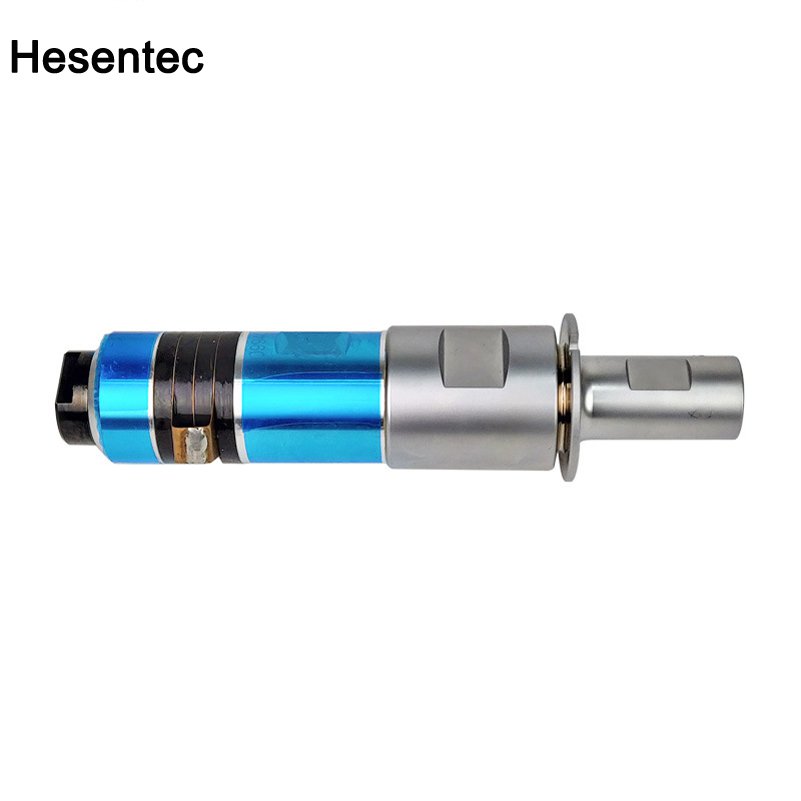

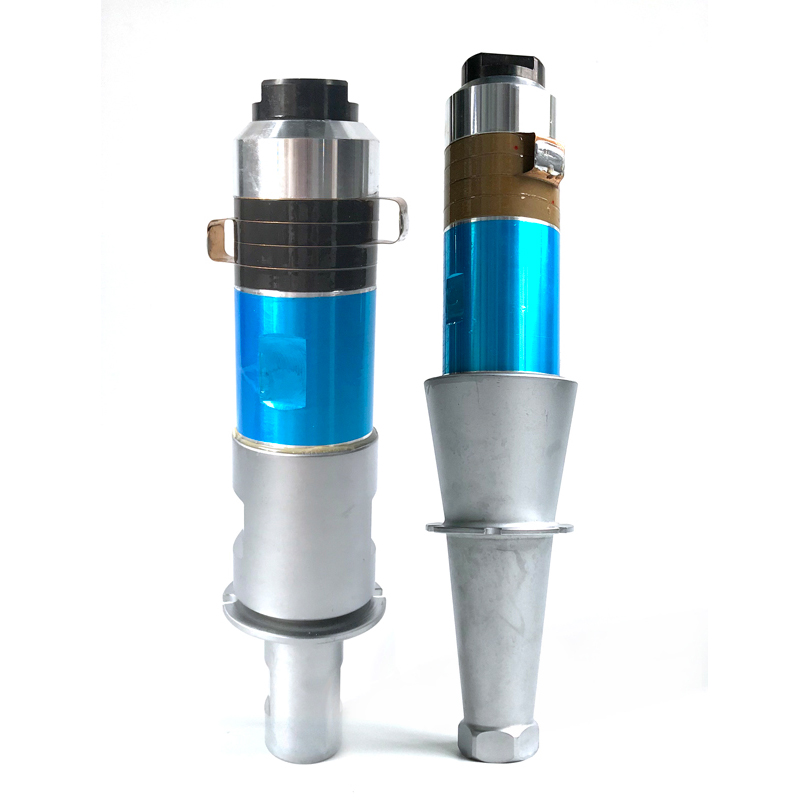

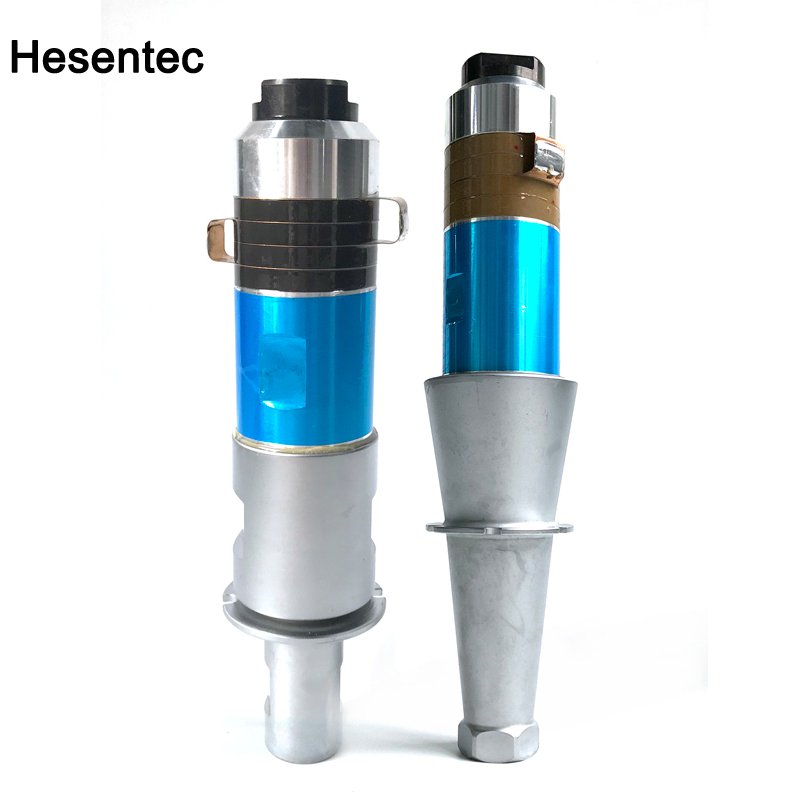

The mask ultrasonic transducer is used in conjunction with an ultrasonic plastic welding machine to weld plastic products.
Piezoelectric ceramic transformers use the piezoelectric effect of the polarized piezoelectric body to achieve voltage output. The input part is driven by a sinusoidal voltage signal, which causes it to vibrate through the inverse piezoelectric effect. The vibration wave is mechanically coupled to the output part through the input and output parts, and the output part generates charges through the positive piezoelectric effect to realize the electrical energy of the piezoelectric body. -Mechanical energy-Two transformations of electrical energy to obtain the output voltage at the resonant frequency of the piezoelectric transformer.

Type	Power(W)	Frequency (KHz)
HS-HJDY-500W28	500W	28KHz
HS-HJDY-800W28	800W	28KHz
HS-HJDY-1500W15	1500W	15KHz
HS-HJDY-1500W20	1500W	20KHz
HS-HJDY-2000W15	2000W	15KHz
HS-HJDY-2000W20	2000W	20KHz
ultrasonic welding generator and transducer
