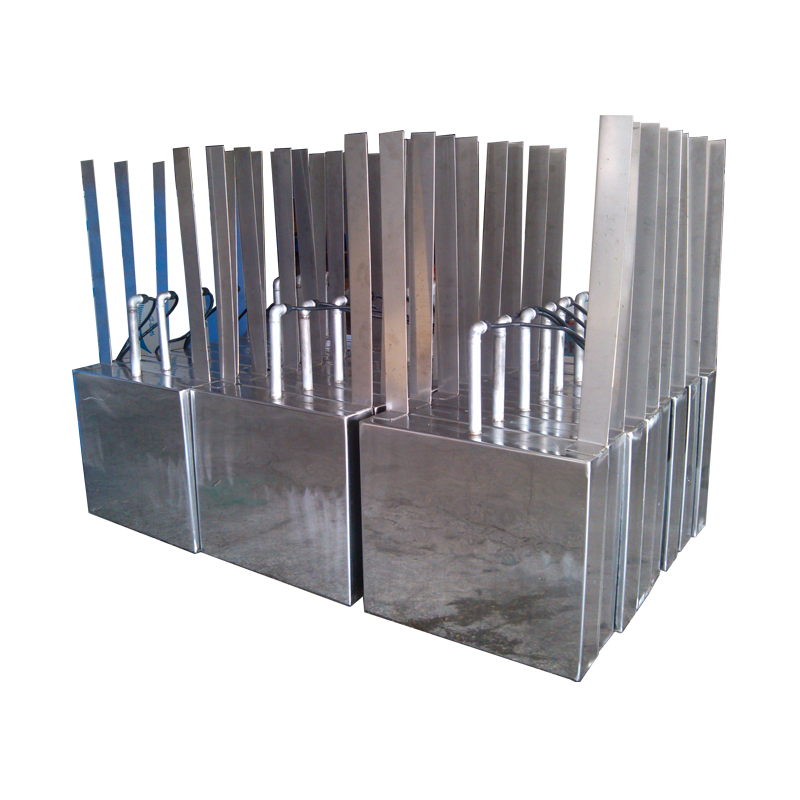

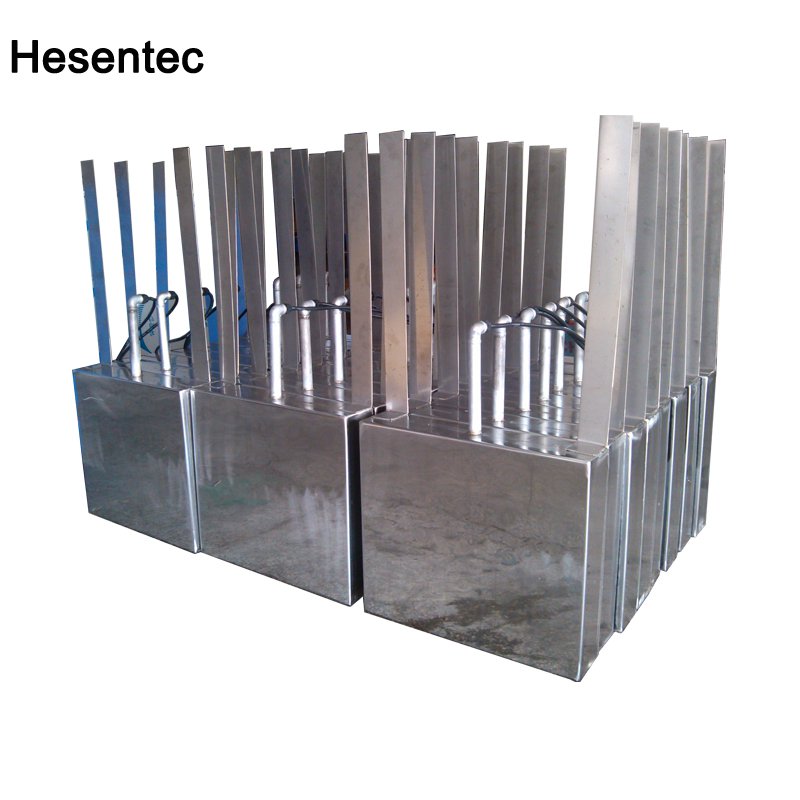

20K 1000W Submersible Transducer Waterproof Vibrating Plate Box

20K 1000W Submersible Cleaning Transducer Waterproof Vibrating Plate Box

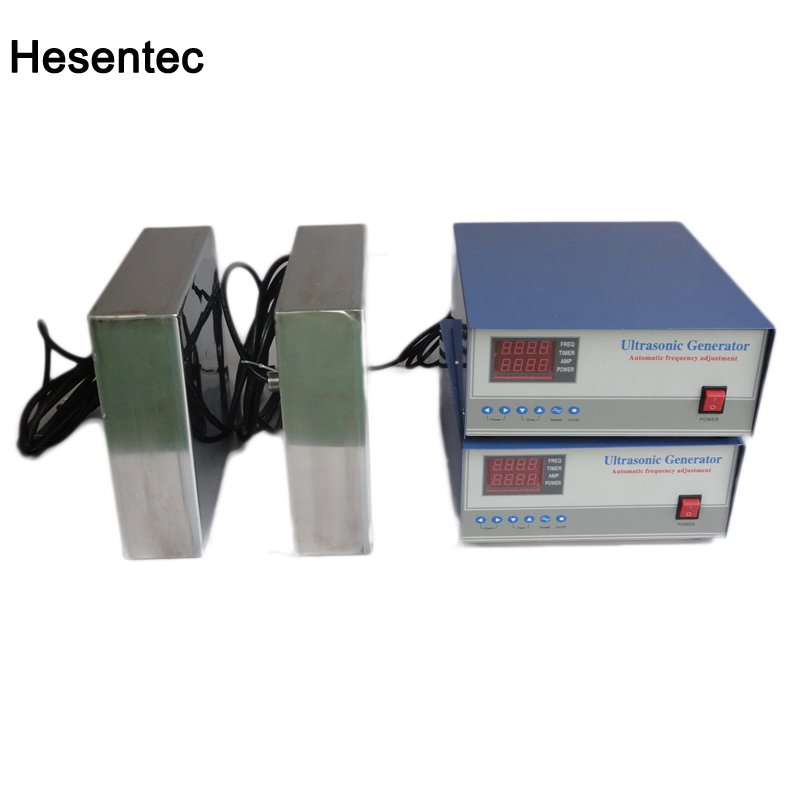

Generator characteristics of ultrasonic submersible transducer: Digital frequency synthesis technology under microcomputer control, continuous adjustment of ultrasonic power (digital display) With perfect protection function: overheating, overcurrent protection, and four-digit timer Time control is accurate to the second. It also has a sweep function.
Maintenance
It must be turned on when the liquid in the cleaning tank passes through the vibration plate of the cleaning machine; the ultrasonic power supply firmly prevents the inflow of liquid to avoid short circuit or corrosion; the tank is cleaned regularly to clean the surface;
When the machine does not work for a long time, it needs to be idling, usually running once every half month or one month;
Since the sealed shock plate belongs to a separate component, it is very convenient in terms of configuration, maintenance and the like. Adapt to a wide range,
It is especially suitable for the occasion of adding ultrasonic cleaning to the liquid of a large container.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
HS-ZBH300W	300*190*100	25,28,33,40,80,130	300	6
HS-ZBH600W	360*275*100	25,28,33,40,80,130	600	12
HS-ZBH1000W	450*350*100	25,28,33,40,80,130	1000	20
HS-ZBH1200W	470*380*100	25,28,33,40,80,130	1200	24
HS-ZBH1500W	520*450*100	25,28,33,40,80,130	1500	30
HS-ZBH1800W	560*450*100	25,28,33,40,80,130	1800	36
HS-ZBH2000W	650*450*100	25,28,33,40,80,130	2000	40
HS-ZBH2400W	740*520*100	25,28,33,40,80,130	2400	48
HS-ZBH3000W	820*540*100	25,28,33,40,80,130	3000	60
HS-ZBH5000W	1200*590*100	25,28,33,40,80,130	5000	100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
