40K Submersible Ultrasonic Transducer Immersible Vibration Board

40KHz Submersible Ultrasonic Transducer Immersible Vibration Board

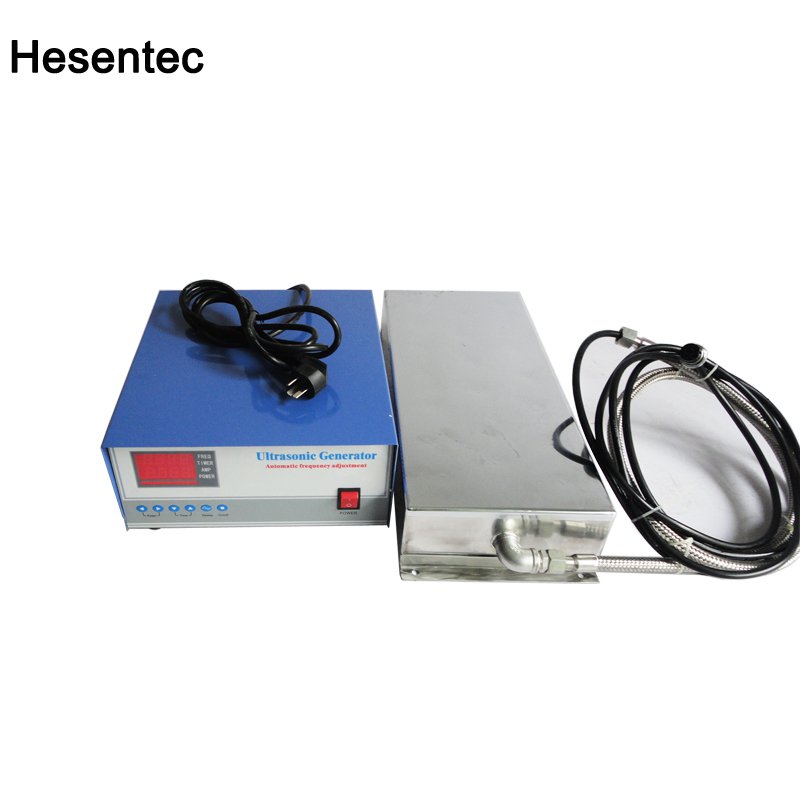

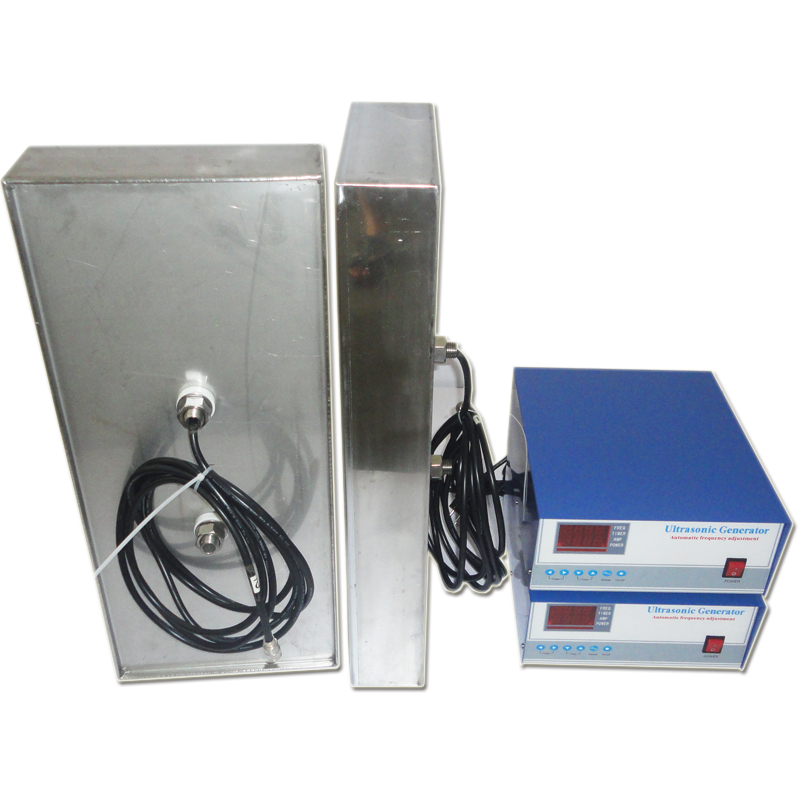

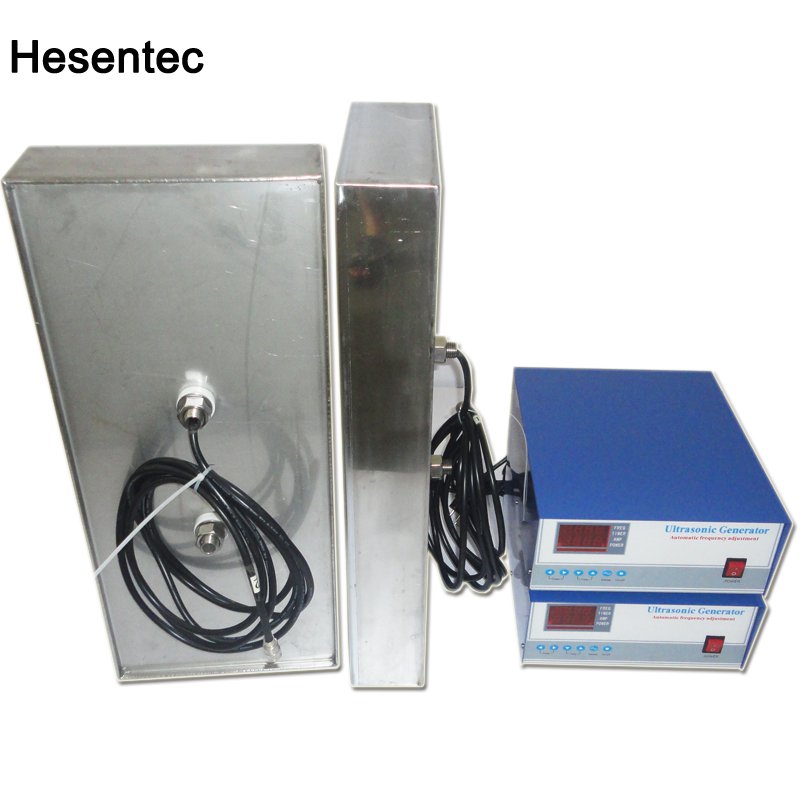

Submersible ultrasonic transducer
The vibrating plate adopts all-stainless steel structure to resist alkali and acid, and the surface of the shock plate is plated with hard chrome. Ultrasonic transducers are made of high-quality, high-performance products with high electroacoustic conversion efficiency.The split structure is adopted, and the high-frequency wire connection with the socket is used between the vibration plate and the ultrasonic generator, which is convenient to use and maintain.The installation and arrangement are flexible. According to the needs, the ultrasonic radiation surface can be arranged on the bottom surface, side surface or top surface of the cleaning tank.
Precautions for use
1: It must be turned on when the liquid in the cleaning tank passes through the vibration plate of the cleaning machine;
2: The ultrasonic generator should be kept away from the heat source as much as possible to maintain good ventilation and heat dissipation;
3: Reliable in the ultrasonic power supply to avoid the inflow of liquid to avoid short circuit or corrosion;
4: Ultrasonic vibration plate works free for more than eight hours at a time. If there is continuous work, it is recommended to work for more than four hours and rest for a while.
5: Regularly clean the tank to clean the surface;

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
HS-ZBH300W	300*190*100	25,28,33,40,80,130	300	6
HS-ZBH600W	360*275*100	25,28,33,40,80,130	600	12
HS-ZBH1000W	450*350*100	25,28,33,40,80,130	1000	20
HS-ZBH1200W	470*380*100	25,28,33,40,80,130	1200	24
HS-ZBH1500W	520*450*100	25,28,33,40,80,130	1500	30
HS-ZBH1800W	560*450*100	25,28,33,40,80,130	1800	36
HS-ZBH2000W	650*450*100	25,28,33,40,80,130	2000	40
HS-ZBH2400W	740*520*100	25,28,33,40,80,130	2400	48
HS-ZBH3000W	820*540*100	25,28,33,40,80,130	3000	60
HS-ZBH5000W	1200*590*100	25,28,33,40,80,130	5000	100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
