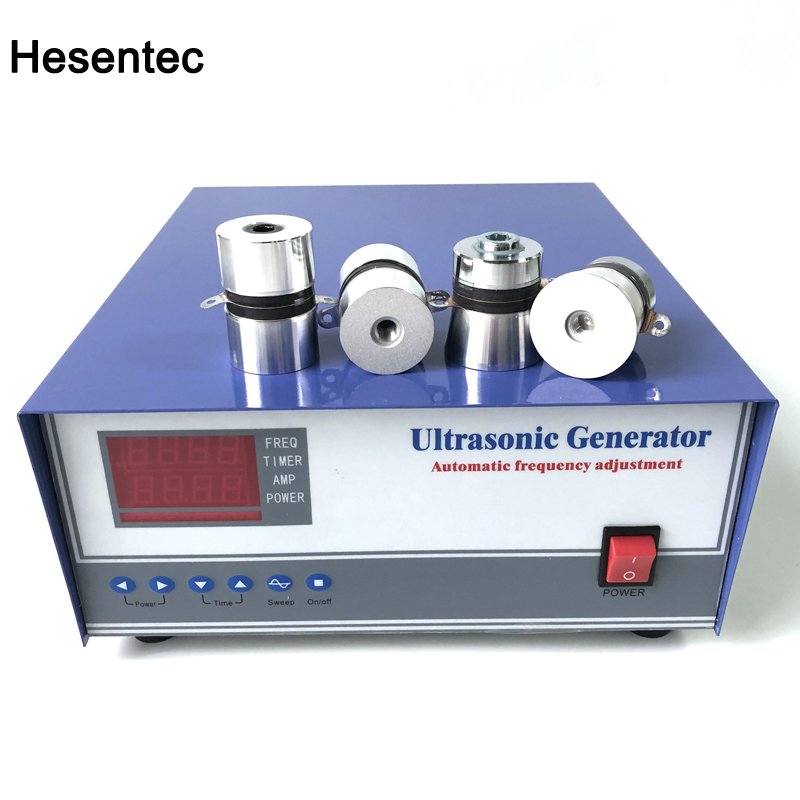

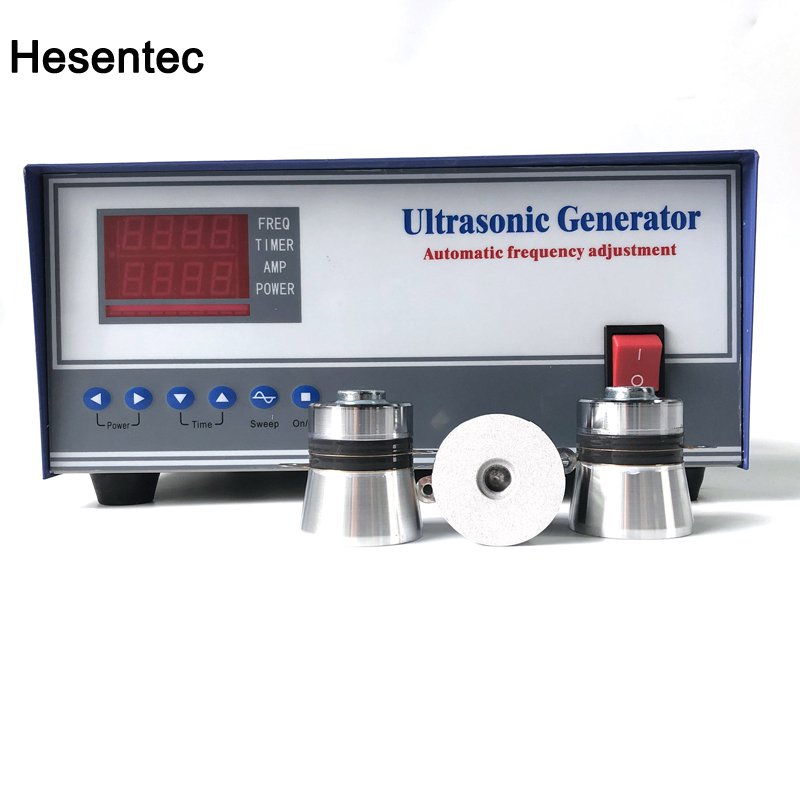

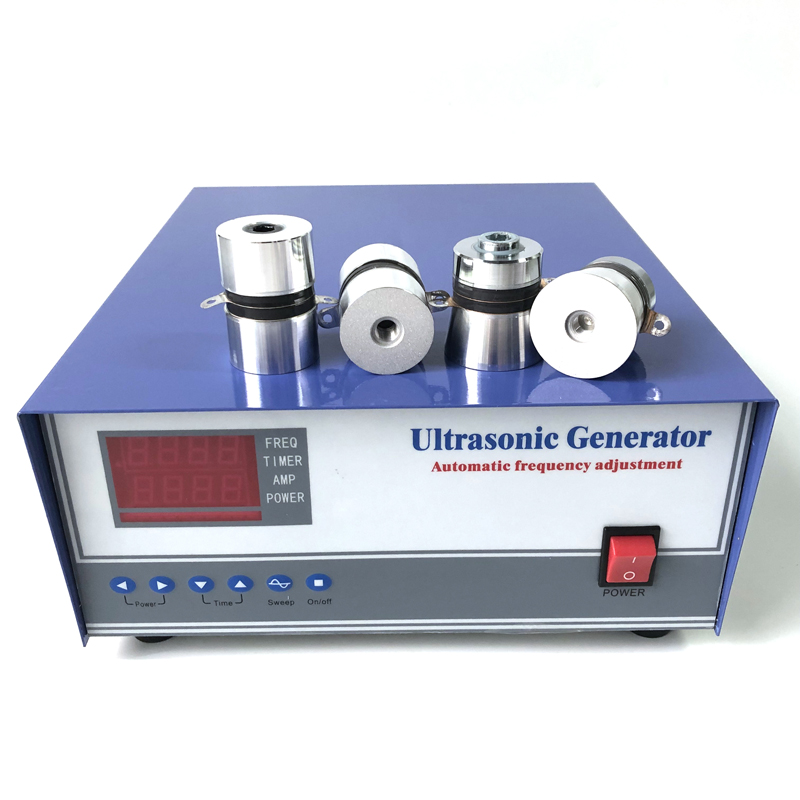

  • 20K-135KHz Ultrasonic Generator For Hesen Ultrasonic Transducer

20K-135KHz Ultrasonic Generator For Hesen Ultrasonic Transducer

20K-135KHz Ultrasonic Generator For Hesen Ultrasonic Transducer Introduction

20KHz-135KHz Ultrasonic Generator For Hesen Ultrasonic Transducer

The ultrasonic generator has a frequency sweep function, and the ultrasonic frequency is reciprocally swept in a reasonable range during the cleaning process to drive the cleaning liquid to form a fine reflow, so that the workpiece dirt is quickly taken away from the workpiece surface while being ultrasonically peeled off, thereby improving the cleaning efficiency. .
The standard ultrasonic generator is an indispensable part of the ultrasonic cleaning machine. The quality of the ultrasonic generator directly determines the quality of the ultrasonic cleaning machine.
Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request




20K-135KHz Ultrasonic Generator For Hesen Ultrasonic Transducer
20K-135KHz Ultrasonic Generator For Hesen Ultrasonic Transducer
